Front Washer Pump/Motor
WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The washer pump/motor unit can be removed from the washer reservoir without removing the reservoir from the vehicle.
- Disconnect and isolate the battery negative cable.

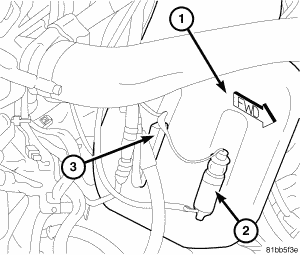

- Siphon the washer fluid from the washer reservoir (1) into a clean container for reuse.
- Remove the two screws that secure the reservoir to the bracket on the top of the left front fender inner wheel house.
- Lift the washer reservoir upward far enough to access the front washer pump/motor unit (2) on the inboard side of the reservoir.
- Disconnect the wire harness connector from the front washer pump/motor unit.
- Disconnect the washer supply hose from the barbed pump outlet nipple.
- Grasp the top of the washer pump/motor housing and pull it firmly inboard far enough to disengage the snap fit between the motor housing and the molded motor receptacle in the reservoir.
- Using hand pressure, firmly grasp and pull the washer pump upward far enough to disengage the pump inlet nipple from the rubber grommet seal/filter screen in the reservoir. Care must be taken not to damage the reservoir.
- Remove the rubber grommet seal/filter screen from the pump mounting hole in the washer reservoir and discard.
