Front Washer System Check Valve

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

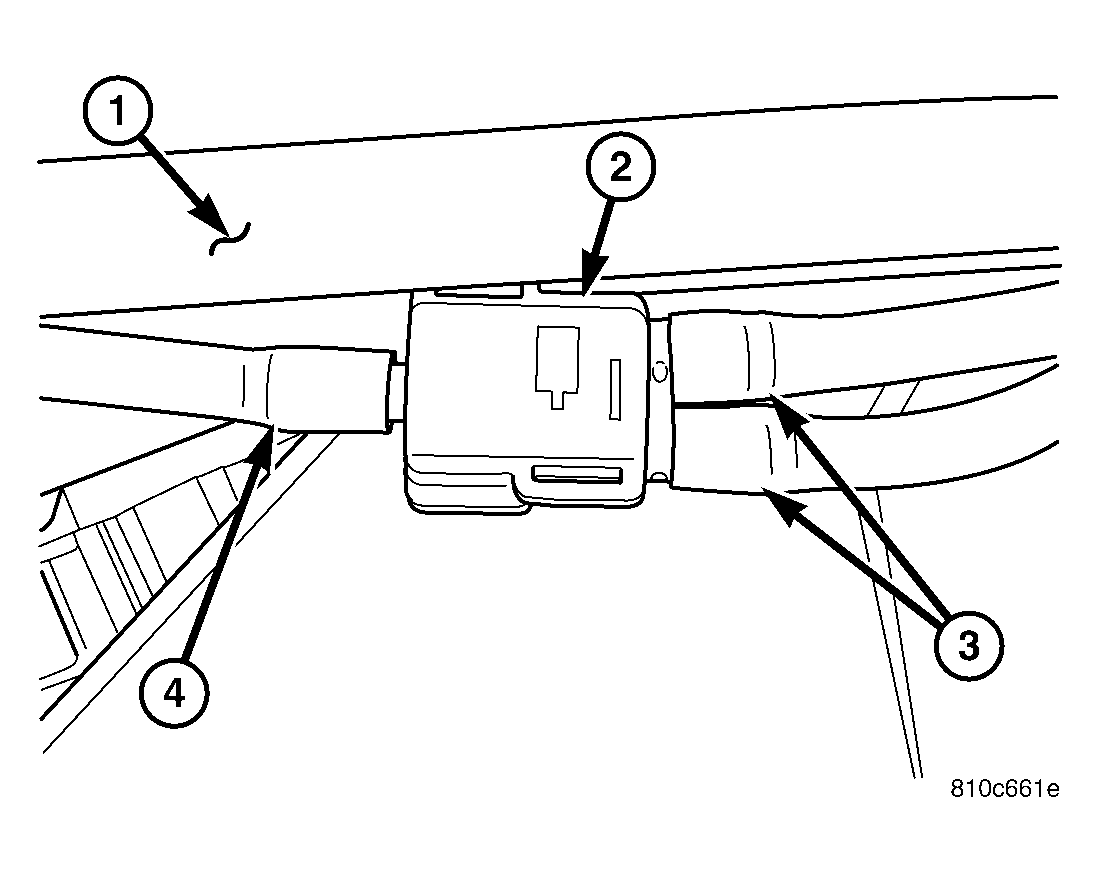

Fig 1: Check Valve Remove/Install
GC0037631Courtesy of CHRYSLER LLC
  1. Position the front check valve unit (2) to the left rear corner of the engine compartment near the dash panel (1).
  2. Reconnect the washer hoses (3 and 4) to the three barbed nipples of the check valve.
  3. Close and latch the hood.
