Code Description
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

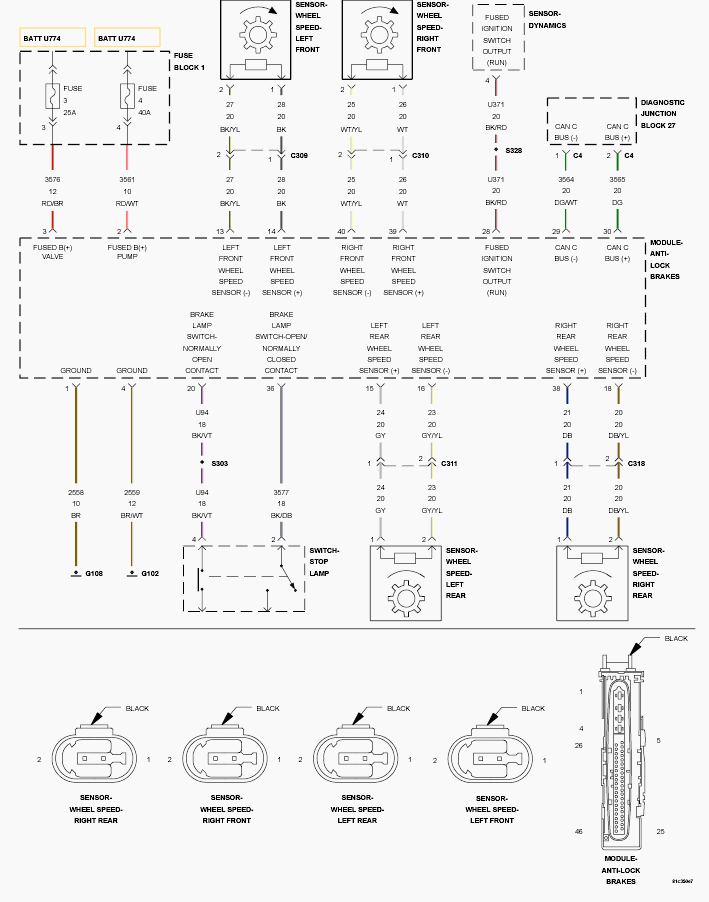

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the ignition on.
- Set Condition:
When the Wheel Speed Sensor (WSS) is shorted to B(+).
| Possible Causes |
|---|
| FRONT LEFT WSS |
| FRONT RIGHT WSS |
| REAR LEFT WSS |
| REAR RIGHT WSS |
| ANTI-LOCK BRAKE MODULE |
