DTC 90A5: Fuel Tank Level Sensor Circuit Low: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

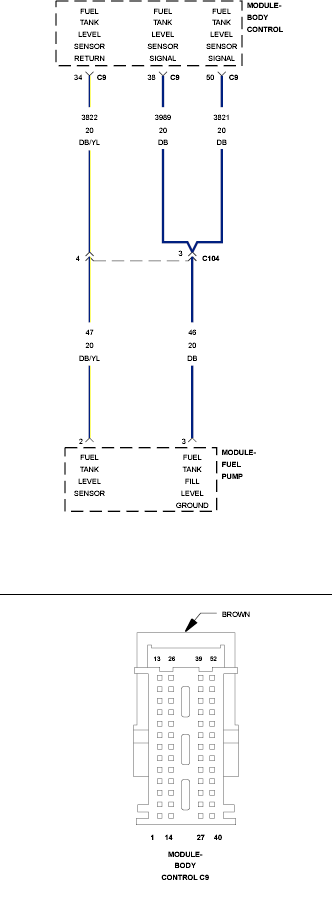

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| FUEL TANK LEVEL SENSOR SIGNAL CIRCUIT SHORT TO GROUND |
| FUEL PUMP MODULE |
| BCM |
