DTC 90A1: Coolant Level Switch Circuit High: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

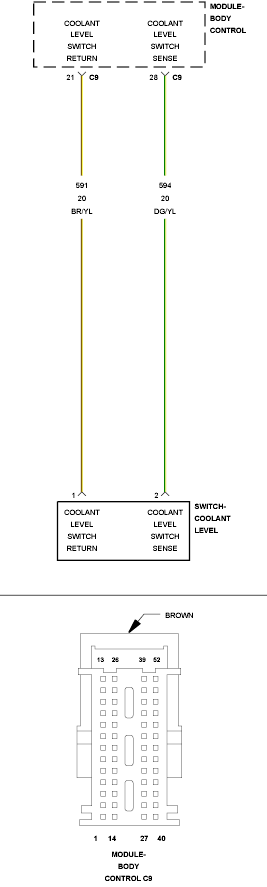

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| COOLANT LEVEL SWITCH SIGNAL CIRCUIT OPEN |
| COOLANT LEVEL SWITCH RETURN CIRCUIT OPEN |
| COOLANT LEVEL SWITCH |
| BCM |
