DTC 90A0: Brake Fluid Level Switch Circuit High: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

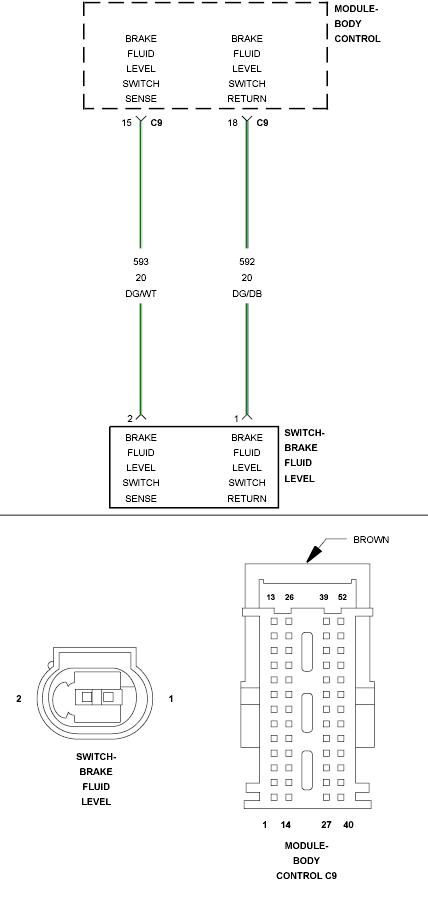

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| BRAKE FLUID LEVEL SWITCH SENSE OPEN |
| BRAKE FLUID LEVEL SWITCH RETURN OPEN |
| BRAKE FLUID LEVEL SWITCH |
| BCM |
