DTC 909E: Brake Wear Sensor Circuit Low: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

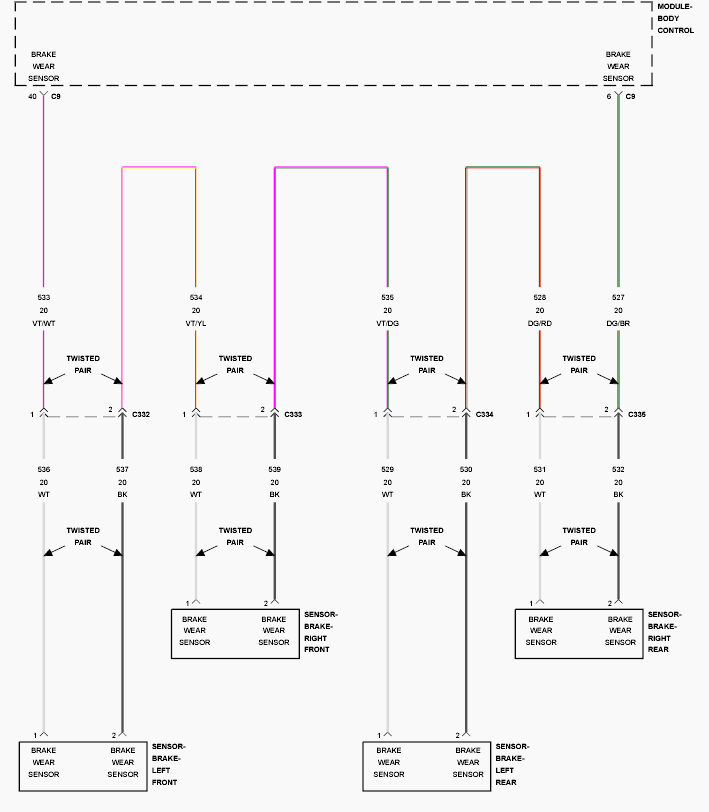

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the ignition on.
- Set Condition:
The BCM detects a short to ground on the Brake Wear Sensor Signal circuit.
| Possible Causes |
|---|
| BRAKE WEAR SENSOR |
| BRAKE WEAR SENSOR CIRCUITS SHORT TO GROUND |
| BCM |
