DTC 909B: Passenger Window Switch Stuck: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

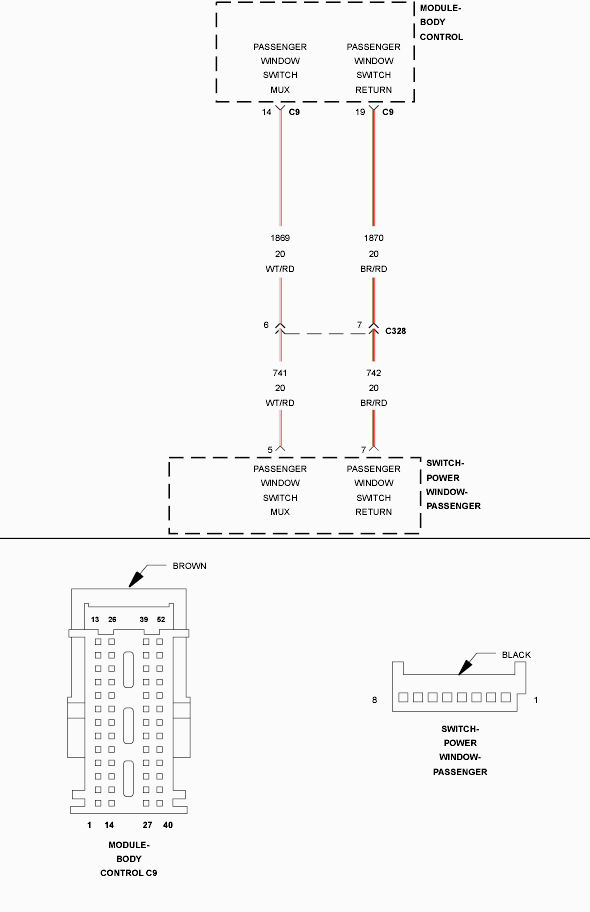

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
Continuously
- Set Condition:
When the Passenger Window Switch Mux circuit is under 3.0 volts for longer than 30 seconds, this code will set.
| Possible Causes |
|---|
| PASSENGER WINDOW SWITCH MUX CIRCUIT PARTIALLY SHORT TO GROUND |
| PASSENGER WINDOW SWITCH |
