DTC 9094: Body Control Module Ground Disconnected: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

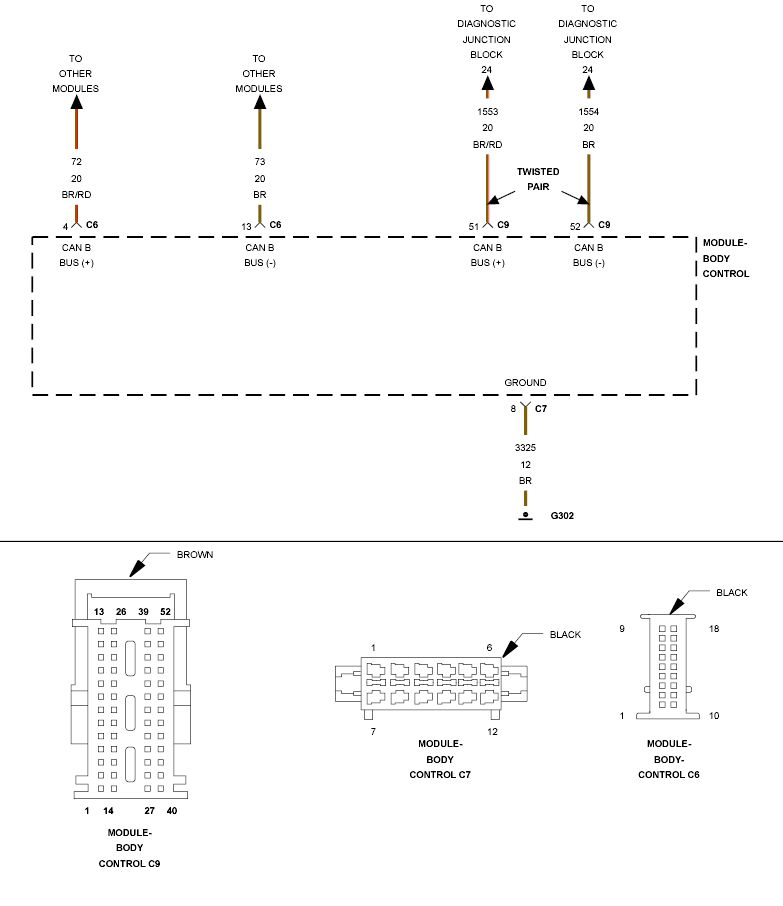

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the ignition on.
- Set Condition:
The Body Control Module (BCM) does not detect a ground circuit.
| Possible Causes |
|---|
| GROUND CIRCUIT OPEN |
| BODY CONTROL MODULE |
