DTC 907E: Rear Window Heater 2 Control Circuit High: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

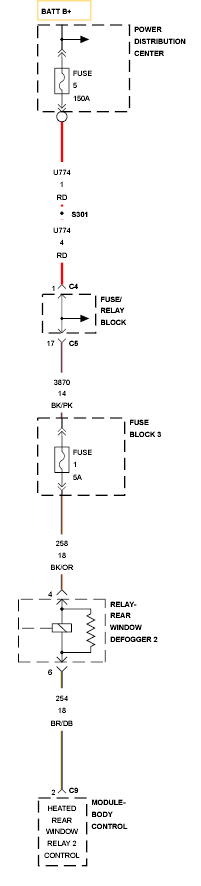

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
Continuously.
- Set Condition:
When the Body Control Module (BCM) senses an over current on the relay control circuit.
| Possible Causes |
|---|
| REAR WINDOW DEFOGGER 2 RELAY |
| HEATED REAR WINDOW 2 RELAY CONTROL CIRCUIT SHORTED TO VOLTAGE |
| BODY CONTROL MODULE (BCM) |
