DTC 907B: Rear Window Heater 1 Control Circuit Low: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

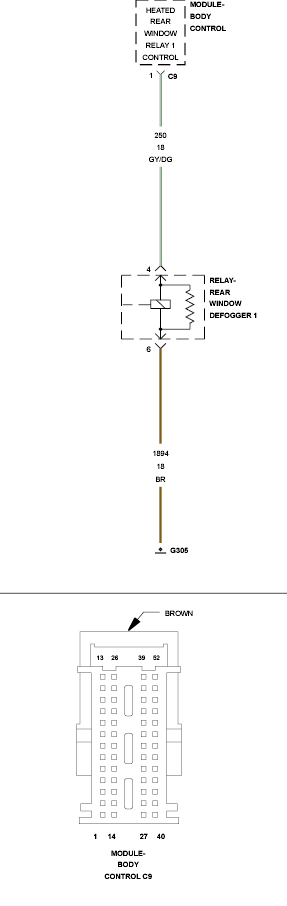

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
Continuously.
- Set Condition:
When the Body Control Module (BCM) detects a shorted low condition on the relay control circuit this DTC will set.
| Possible Causes |
|---|
| REAR WINDOW DEFOGGER 1 RELAY |
| HEATED REAR WINDOW 1 RELAY CONTROL CIRCUIT SHORT TO GROUND |
| BODY CONTROL MODULE (BCM) |
