DTC 906A: Left Vent Window Control Circuit High: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

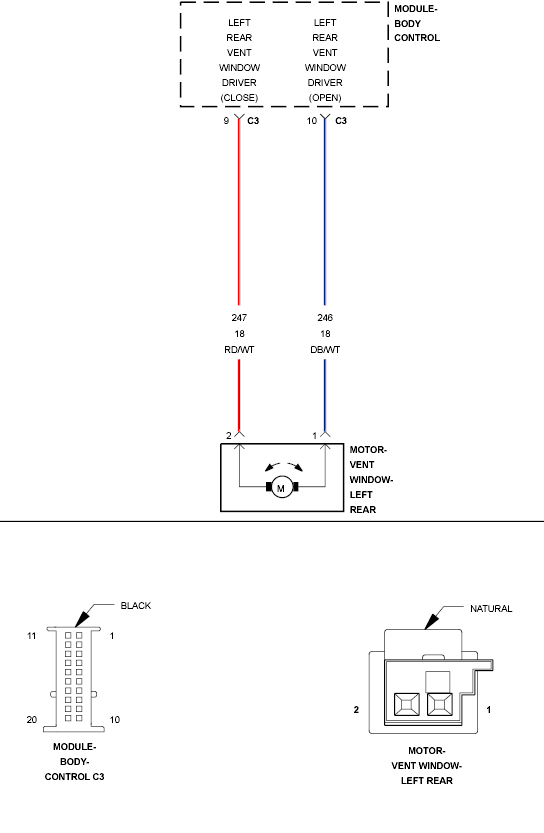

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
Whenever the module is awake.
- Set Condition:
When the BCM does not sense a change in voltage on the left vent window circuit during a close or open command, this code will set
| Possible Causes |
|---|
| LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT OPEN |
| LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT OPEN |
| LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT SHORT TO VOLTAGE |
| LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT SHORT TO VOLTAGE |
| LEFT REAR VENT MOTOR |
| BODY CONTROL MODULE (BCM) |
