Diagnostic Test

WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase the DTCs
3. Operate the left rear vent motor in both directions several times.
4. Wait 30 seconds.
5. With the scan tool, read the DTCs.
  Does the scan tool display 906A-LEFT VENT WINDOW CONTROL CIRCUIT HIGH?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the SYSTEM WIRING DIAGRAMS as a guide, inspect the wiring and connectors.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .

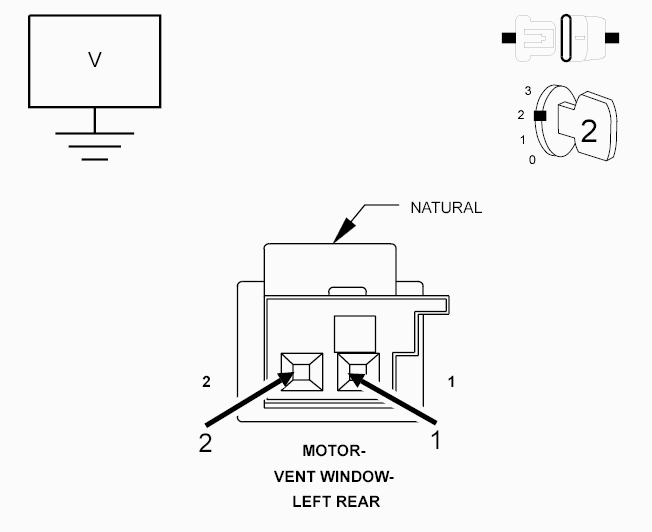

LEFT REAR VENT WINDOW DRIVER CIRCUIT SHORT TO VOLTAGE

Courtesy of CHRYSLER LLC
1. With the scan tool, erase the DTCs.
2. Disconnect the Left Rear Vent Motor connector.
  NOTE: Make sure the ignition is on and the Left Rear Vent Window switch is in the neutral position
3. Measure the voltage between the Left Rear Vent Window Driver (Close) circuit and ground in the motor connector.
4. Measure the voltage between the Left Rear Vent Window Driver (Open) circuit and ground in the motor connector.
  Is there any voltage present on either circuit?

  Yes
  - Go to step 6
  No
  - Go to step 3

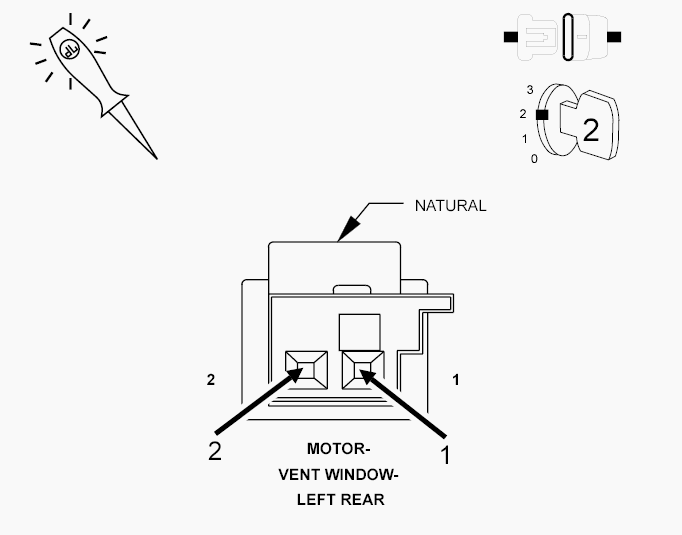

LEFT REAR VENT MOTOR

Courtesy of CHRYSLER LLC
1. Connect a 12-volt test light between the Left Rear Vent Window Driver (Open) circuit and the Left Rear Vent Window Driver (Close) circuit in the motor connector.
2. Operate the left rear vent motor in both directions several times while observing the test light.
  Does the test light illuminate brightly when the switch is activated in both directions?

  Yes
  - Replace the Left Rear Vent Motor in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .
  No
  - Go to step 4

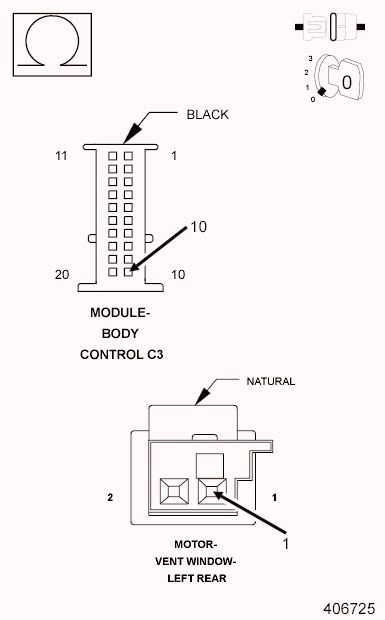

LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT OPEN

Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Body Control Module C3 connector.
3. Measure the resistance of the Left Rear Vent Window Driver (Open) circuit between the BCM C3 connector and the motor connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 5
  No
  - Repair the Left Rear Vent Window Driver (Open) circuit for an open.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .

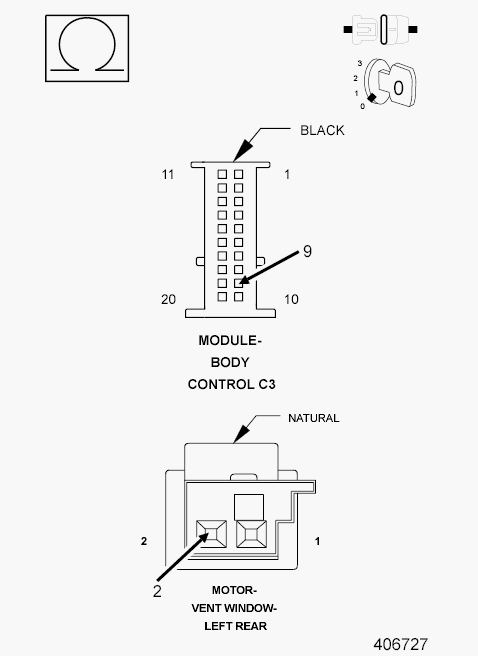

LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT OPEN

Courtesy of CHRYSLER LLC
1. Measure the resistance of the Left Rear Vent Window Driver (close) circuit between the BCM C3 connector and the motor connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Body Control Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .
  No
  - Repair the Left Rear Vent Window Driver (Close) circuit for an open.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .

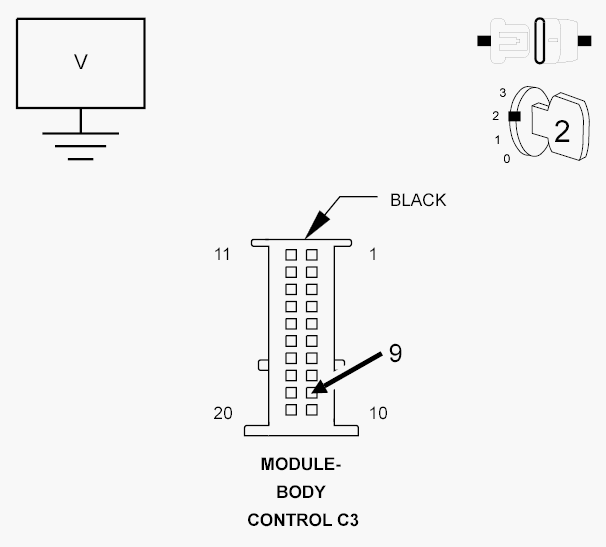

LEFT REAR VENT WINDOW DRIVER (CLOSE) CIRCUIT SHORT TO VOLTAGE

Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Body Control Module C3 connector.
3. Turn the ignition on.
4. Measure the voltage between the Left Rear Vent Window Driver (Close) circuit and ground.
  Is there any voltage present?

  Yes
  - Repair the Left Rear Vent Window Driver (Close) circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .
  No
  - Go to step 7

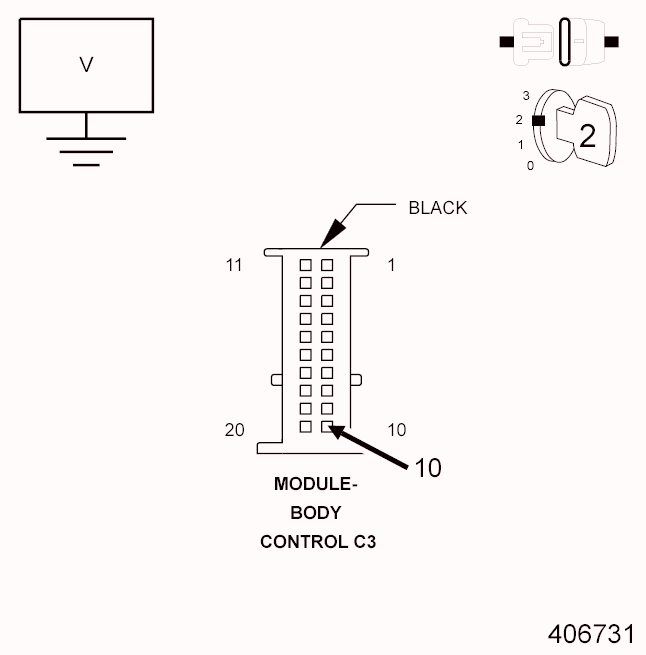

LEFT REAR VENT WINDOW DRIVER (OPEN) CIRCUIT SHORT TO VOLTAGE

Courtesy of CHRYSLER LLC
1. Measure the voltage between the Left Rear Vent Window Driver (Open) circuit and ground.
  Is there any voltage present?

  Yes
  - Repair the Left Rear Vent Window Driver (Open) circuit for a short to voltage.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .
  No
  - Replace the Body Control Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Body Control (BCM) - Standard Procedure .
