DTC 9000: Left Parking Lamp Control Circuit Low-BCM: Notes
WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

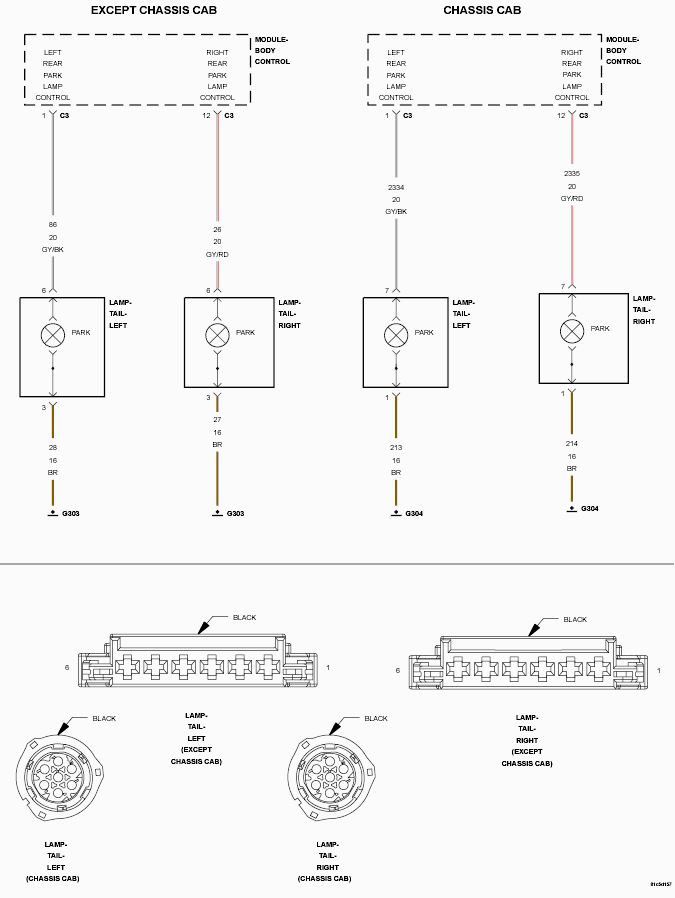

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
With the Park Lamps activated.
- Set Condition:
When the BCM detects a LOW condition.
| Possible Causes |
|---|
| BODY CONTROL MODULE |
