*No Response From Tire Pressure Monitor Module: Notes
WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

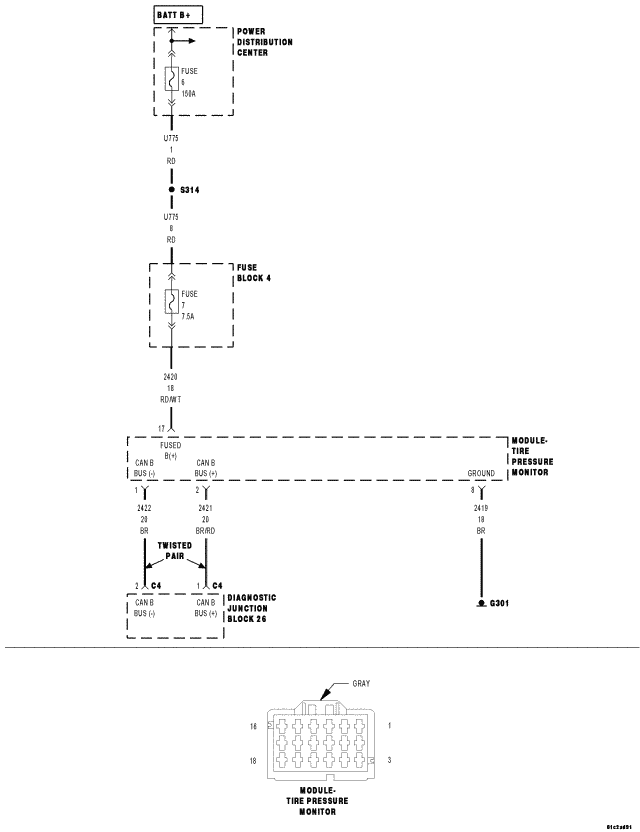

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.
| Possible Causes |
|---|
| GROUND CIRCUIT OPEN |
| FUSED B(+) CIRCUIT OPEN OR SHORTED |
| CAN B BUS CIRCUITS OPEN |
| TIRE PRESSURE MONITOR MODULE |
