*No Response From CCN (Cluster): Notes
WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

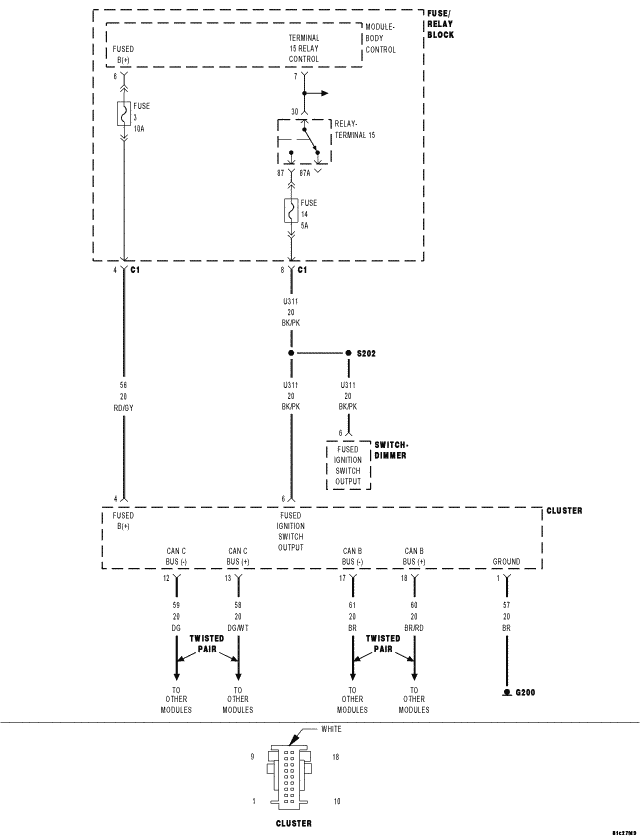

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.
| Possible Causes |
|---|
| FUSED B(+) CIRCUITS OPEN OR SHORTED |
| GROUND CIRCUIT OPEN |
| FUSED IGNITION SWITCH OUTPUT CIRCUIT OPEN OR SHORTED |
| CAN B BUS CIRCUITS OPEN |
| CLUSTER (CCN) |
