Diagnostic Test

WARNING: This page is about a different car, the 2007 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1) TEST FOR INTERMITTENT CONDITION
    NOTE: This diagnostic test may apply to either Auxiliary Heater Module on the vehicle.

    Turn the ignition on.

    NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

    With the scan tool, select ECU view.

    NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

    Does the scan tool display a red X next to the module?

    Yes

    1. Go To step  2).

    No

    1. The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
  2. 2) GROUND CIRCUIT OPEN

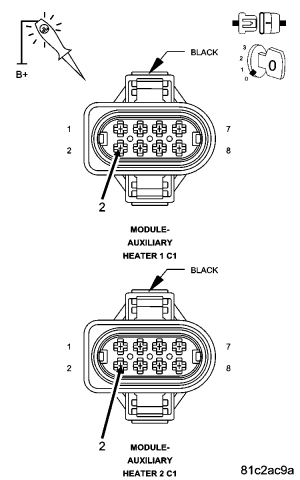

    Fig 1: Auxiliary Heater Module Harness Connectors - Pins 2
    GC0065433Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Using a 12-volt test light connected to 12-volts, check the ground circuit.

    Does the test light illuminate brightly?

    Yes

    1. Go To step  3).

    No

    1. Repair the ground circuit for an open.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  3. 3) FUSED B(+) CIRCUIT OPEN OR SHORTED

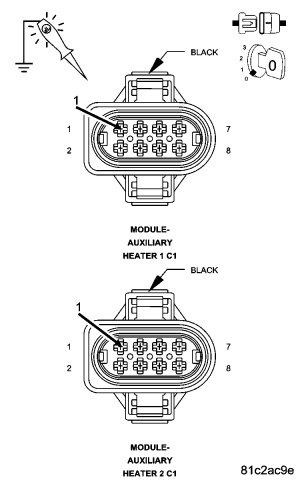

    Fig 2: Auxiliary Heater Module Harness Connectors - Pins 1
    GC0065434Courtesy of CHRYSLER LLC

    Using a 12-volt test light connected to ground, check the Fused B(+) circuit.

    Does the test light illuminate brightly?

    Yes

    1. Go To step  4).

    No

    1. Repair the Fused B(+) circuit for an open or short.
    2. Perform BODY VERIFICATION TEST - VER 1 .
  4. 4) CAN B BUS CIRCUITS OPEN

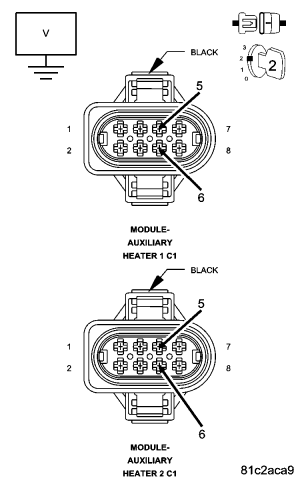

    Fig 3: Auxiliary Heater Module Harness Connectors - Pins 5 And 6
    GC0065435Courtesy of CHRYSLER LLC
    NOTE: One open circuit will not cause this condition.

    Turn the ignition on.

    Measure the voltage between the CAN B Bus (-) circuit and ground.

    Measure the voltage between the CAN B Bus (+) circuit and ground.

    Is there any voltage present on either circuit?

    Yes

    1. Replace the Auxiliary Heater Module in accordance with the service information.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Inspect the connector for damage. Repair the CAN B Bus circuits for an open.
    2. Perform BODY VERIFICATION TEST - VER 1 .
