MODULE, Glow Plug: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.

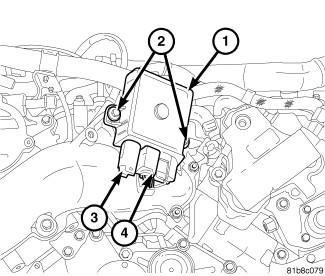

    Fig 1: Glow Plug Module
    GC0133894Courtesy of CHRYSLER LLC
  2. Disconnect the battery positive harness connector (3) from the glow plug module.
  3. Disconnect the glow plug harness connector (4).
  4. Remove the two glow plug module bolts (2).
  5. Remove the glow plug module (1).
