MODULE, Engine Control, Diesel: Removal: Removal: Notes

WARNING: This page is about a different car, the 2009 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a replacement (new) Powertrain Control Module (PCM) is installed, a scan tool must be used to program (flash) the new PCM with vehicle specific information.
  1. Disconnect the negative battery cable.

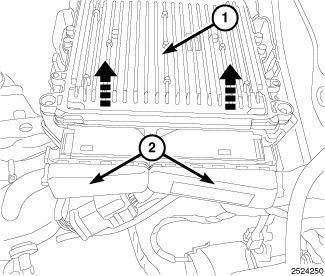

    Fig 1: Removing / Installing PCM Harness Connectors
    GC0133888Courtesy of CHRYSLER LLC
  2. Disconnect the PCM harness connectors (2).
  3. Grasp PCM (1) and pull up firmly to release PCM (1) from the retaining bracket.
