Diagnostic Test

  1. 1) PRE-DIAGNOSTIC CHECK OUT
    NOTE: Always perform diagnostics with a fully charged battery.
    NOTE: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.
    NOTE: Check for applicable TSBs related to the problem.

    Turn the ignition on.

    With the scan tool, read PCM DTCs.

    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Repair as necessary.

    Perform this procedure prior to symptom diagnosis.

    Continue

    1. Go to  2).
  2. 2) CHECK FOR CURRENT DTC

    Turn the ignition on.

    With the scan tool, read PCM DTCs.

    Is this DTC present?

    Yes

    1. Go to  3).

    No

    1. Go to  11).
  3. 3) KNOCK SENSOR RESISTANCE
    Fig 1: Checking Knock Sensor
    GC0034210Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect PCM C3 harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Measure the resistance of the Knock Sensor at the PCM C3 harness connector.

    Is the resistance 4-5 megohms?

    Yes

    1. Replace and program the Powertrain Control Module. Refer to REMOVAL .
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

    No

    1. Go to  4).

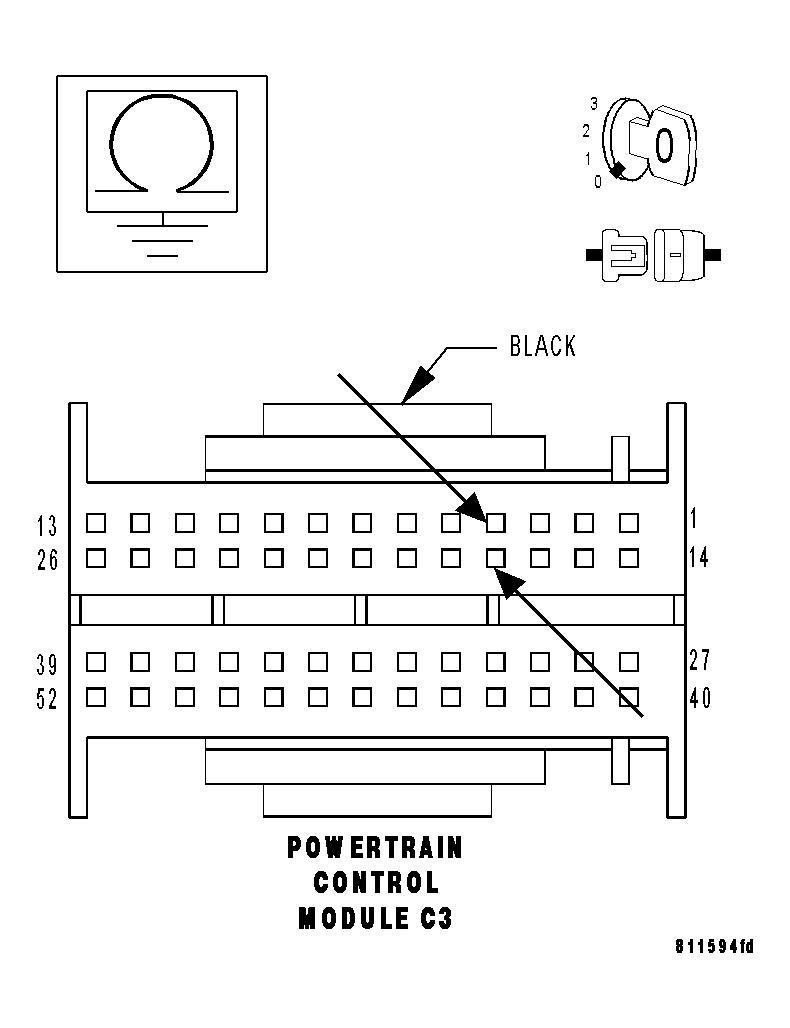

  4. 4) KNOCK SENSOR SIGNAL CIRCUIT SHORT TO GROUND
    Fig 2: Checking Knock Sensor Signal Circuit
    GC0034211Courtesy of CHRYSLER LLC

    With the ignition off.

    Measure the resistance between ground and the Knock Sensor Signal circuit.

    Is resistance above 100 kohms?

    Yes

    1. Go to  5).

    No

    1. Repair the Knock Sensor Signal circuit for a short to ground.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

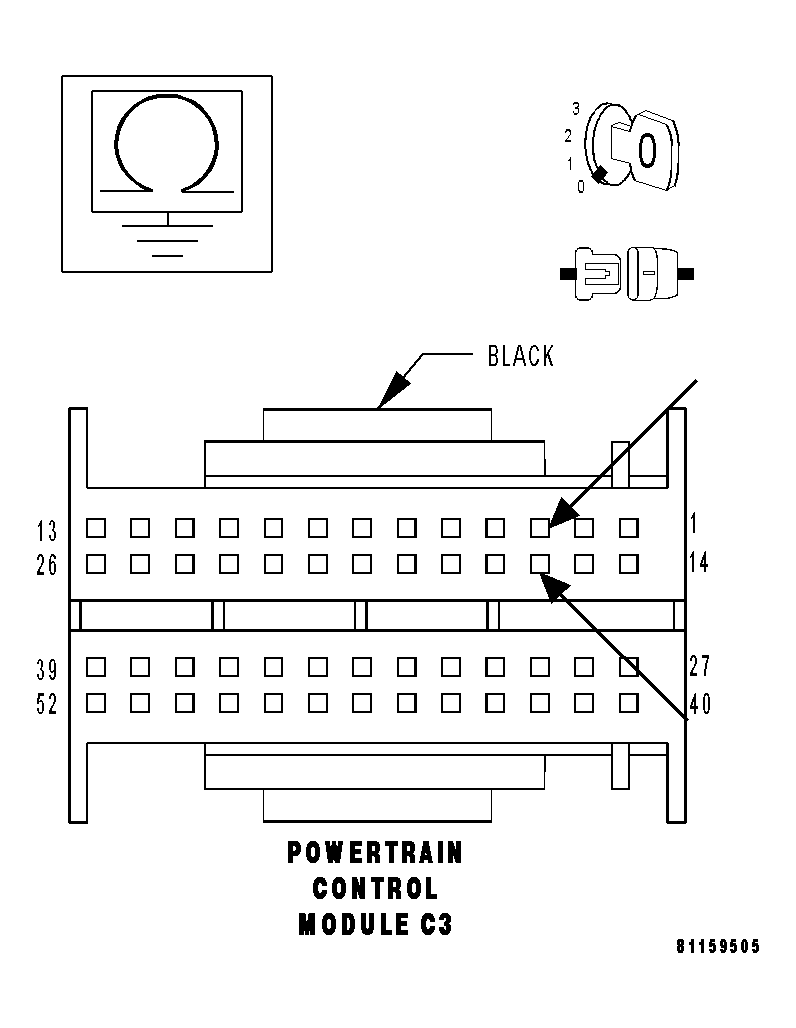

  5. 5) SENSOR GROUND CIRCUIT SHORT TO GROUND
    Fig 3: Checking Knock Sensor Ground Circuit
    GC0034212Courtesy of CHRYSLER LLC

    With the ignition off.

    Measure the resistance between ground and the Sensor Ground circuit.

    Is resistance above 100 kohms?

    Yes

    1. Go to  6).

    No

    1. Repair the Sensor Ground circuit for a short to ground.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

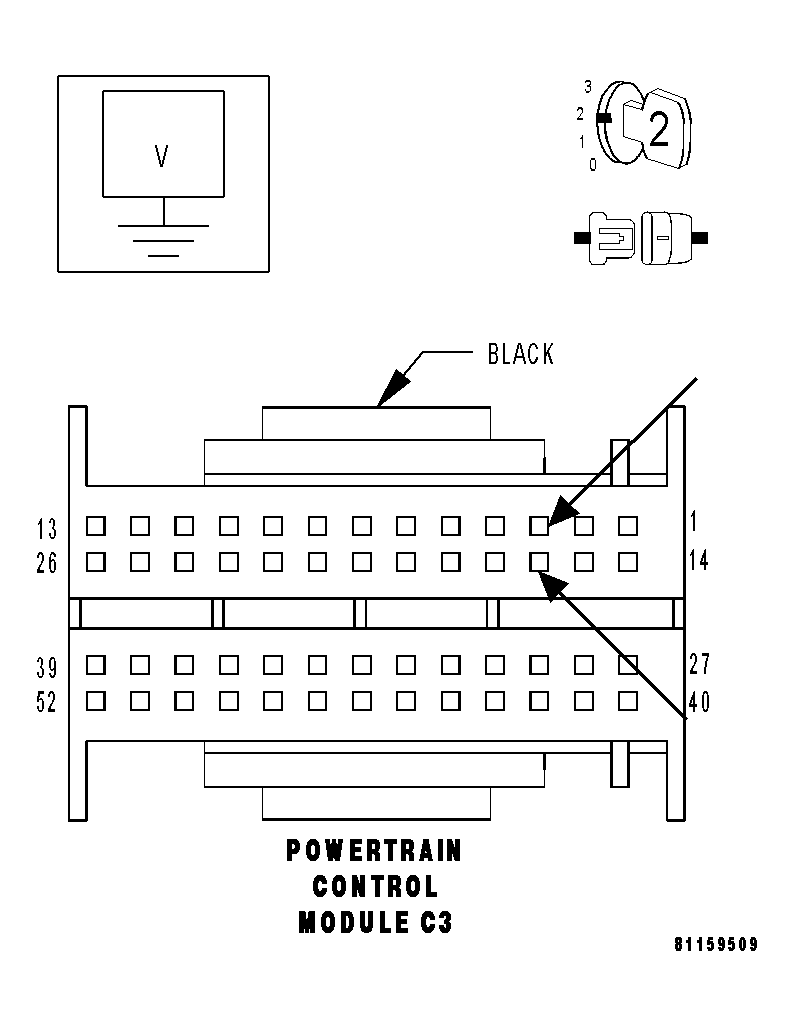

  6. 6) SENSOR GROUND CIRCUIT SHORT TO VOLTAGE
    Fig 4: Checking Knock Sensor Ground Circuit
    GC0034213Courtesy of CHRYSLER LLC

    Turn the ignition on.

    Measure the voltage of the Sensor Ground circuit at the PCM C3 harness connector.

    Is the voltage below 1.0 volt?

    Yes

    1. Go to  7).

    No

    1. Repair the Sensor Ground circuit for a short to voltage.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

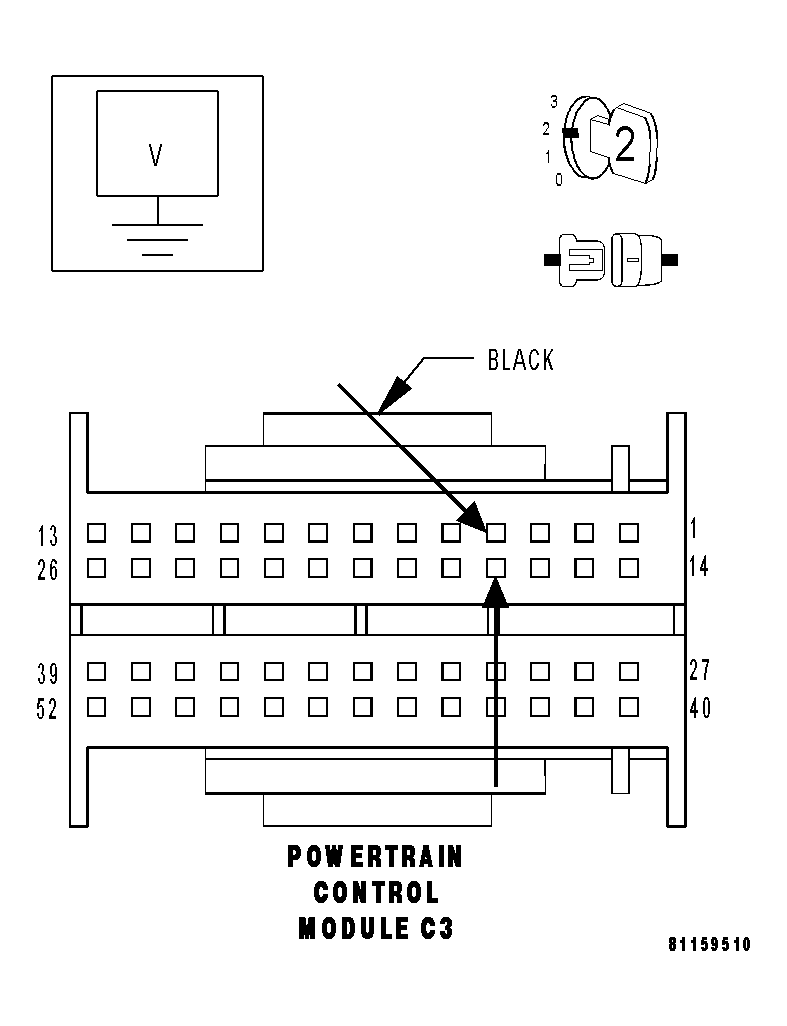

  7. 7) KNOCK SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
    Fig 5: Checking Knock Sensor Signal Circuit
    GC0034214Courtesy of CHRYSLER LLC

    With the ignition on.

    Measure the voltage of the Knock Sensor Signal circuit at the PCM C3 harness connector.

    Is the voltage below 1.0 volt?

    Yes

    1. Go to  8).

    No

    1. Repair the Knock Sensor Signal circuit for a short to voltage.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

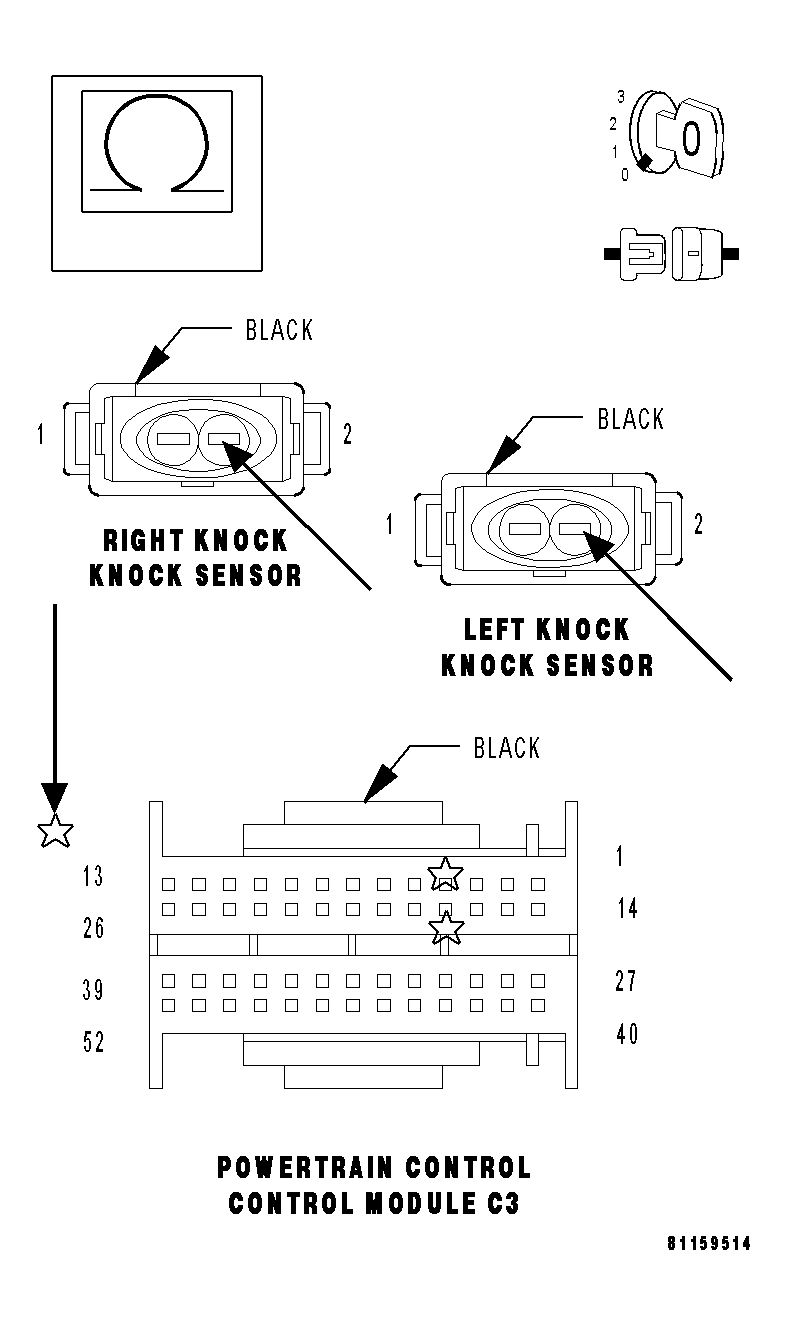

  8. 8) KNOCK SENSOR SIGNAL CIRCUIT OPEN
    Fig 6: Checking Knock Sensor Signal Circuit
    GC0034215Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the Knock Sensor harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Measure the resistance of the Knock Sensor Signal circuit from the Knock Sensor harness connector to the PCM C3 harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  9).

    No

    1. Repair the Knock Sensor Signal circuit for an open.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

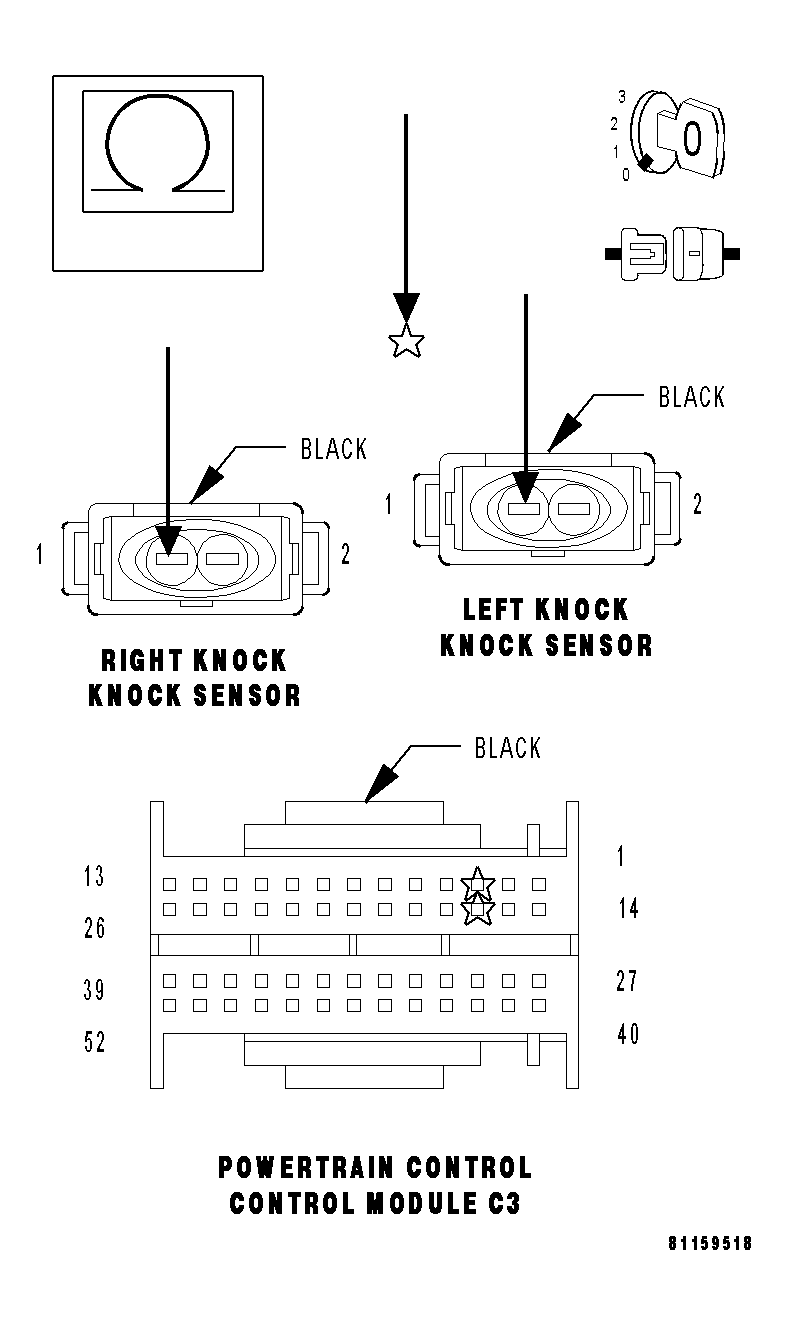

  9. 9) SENSOR GROUND CIRCUIT OPEN
    Fig 7: Checking Knock Sensor Ground Circuit
    GC0034216Courtesy of CHRYSLER LLC

    With the ignition off.

    Measure the resistance of the Sensor Ground circuit from the Knock Sensor harness connector to the PCM C3 harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go to  10).

    No

    1. Repair the Sensor Ground circuit for an open.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .
  10. 10) KNOCK SENSOR SIGNAL CIRCUIT SHORT TO SENSOR GROUND CIRCUIT
    Fig 8: Checking Knock Sensor Signal Circuit & Ground Circuit
    GC0034217Courtesy of CHRYSLER LLC

    With the ignition off.

    Measure the resistance between the Knock Sensor Signal circuit and the Sensor Ground circuit at the Knock Sensor harness connector.

    Is resistance above 100 kohms?

    Yes

    1. Replace the Knock Sensor. Refer to REMOVAL .
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

    No

    1. Repair the Knock Sensor Signal circuit for a short to the Sensor Ground circuit.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .
  11. 11) INTERMITTENT WIRING AND CONNECTORS

    The conditions necessary to set this DTC are not present at this time.

    NOTE: Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs.
    Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.
    NOTE: Check for any Technical Service Bulletins that may apply.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform POWERTRAIN VERIFICATION TEST - VER 2 .

    No

    1. The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
