Description - Spark Plugs

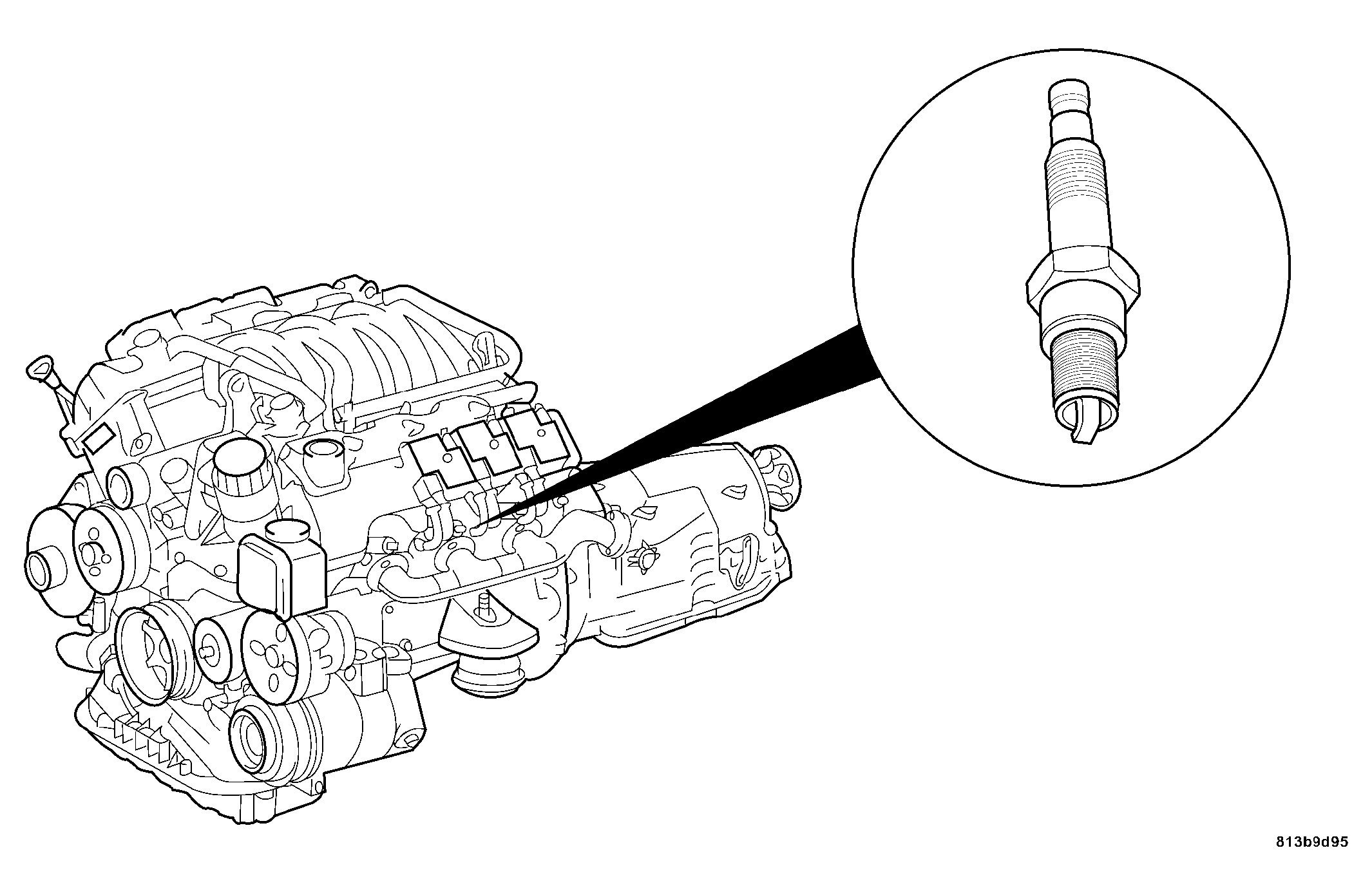

The engine uses platinum tip resistor spark plugs. Platinum-tip spark plugs allow 100,000-mile (161,000-km) replacement intervals in normal service. They have resistance values of 6,000 to 20,000 ohms when checked with at least a 1000 volt tester. For spark plug identification and specifications, see SPECIFICATIONS .
Do not use an ohmmeter to check the resistance of the spark plugs. This will give an inaccurate reading.

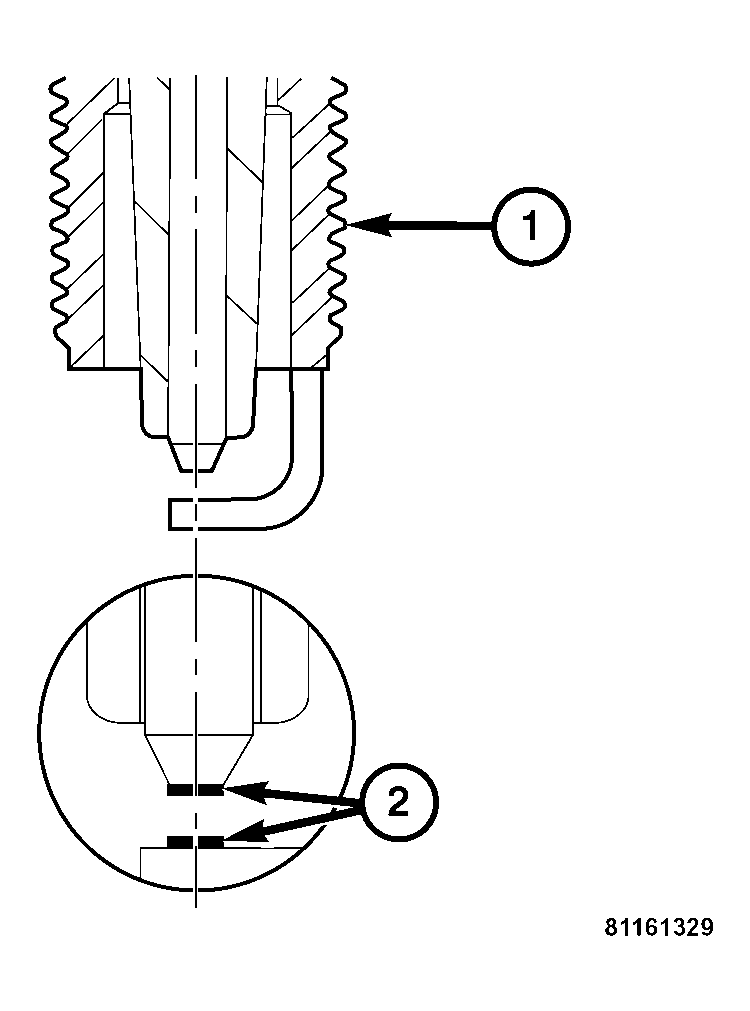

Spark plugs using either a single or double platinum tips have a recommended service life of 100,000 miles for normal driving conditions per schedule A in the service information. The spark plugs have a recommended service life of 75,000 miles for severe driving conditions. A thin platinum pad is welded to both or just the center electrode (2) end(s). Extreme care must be used to prevent spark plug cross threading, incorrect gapping, and ceramic insulator damage during plug removal and installation.
