Crossfire Base, 2D Convertible
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>

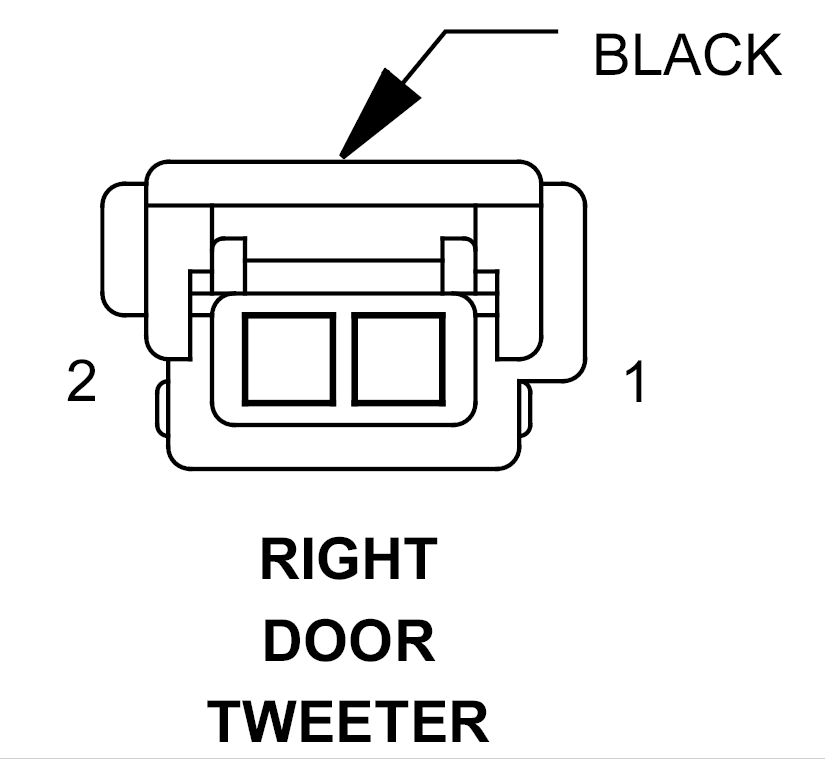

Right Door Tweeter Connector End View
Right Door Tweeter Connector End View
RIGHT DOOR TWEETER - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BR/DG
AMPLIFIED RIGHT DOOR SPEAKER (-)
2
18BK/BL
AMPLIFIED RIGHT DOOR SPEAKER (+)
