Rear Spoiler Motor Connector End View

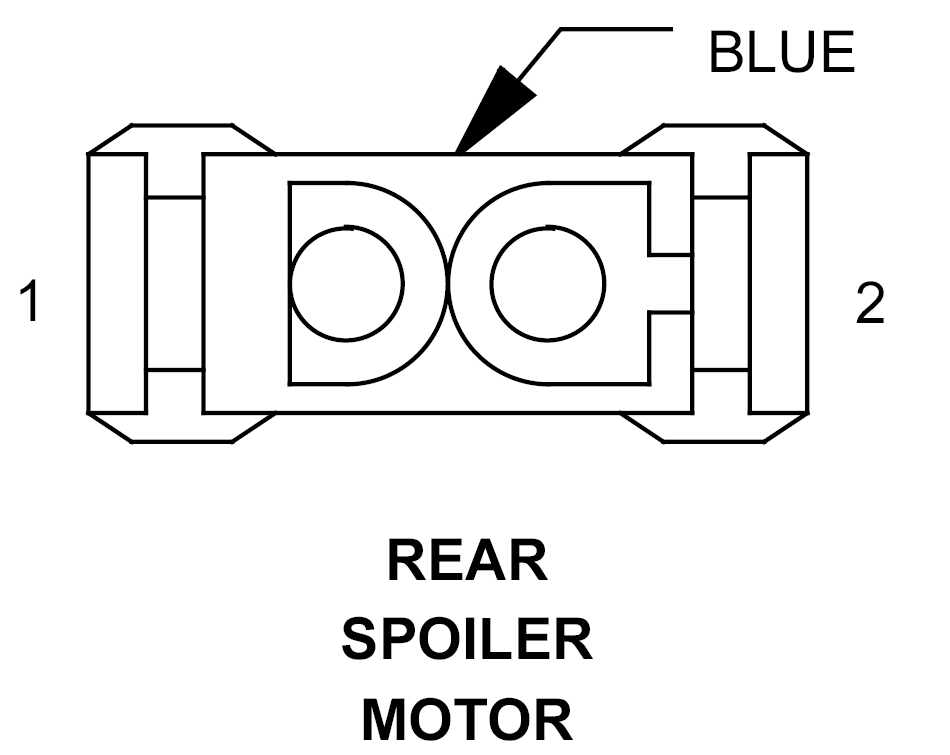

REAR SPOILER MOTOR - BLUE 2-WAY

GZH780205Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 16BR/WT REAR SPOILER DRIVER (UP)
2 16RD/WT REAR SPOILER DRIVER (DOWN)
