Radiator Fan Motor Connector End View

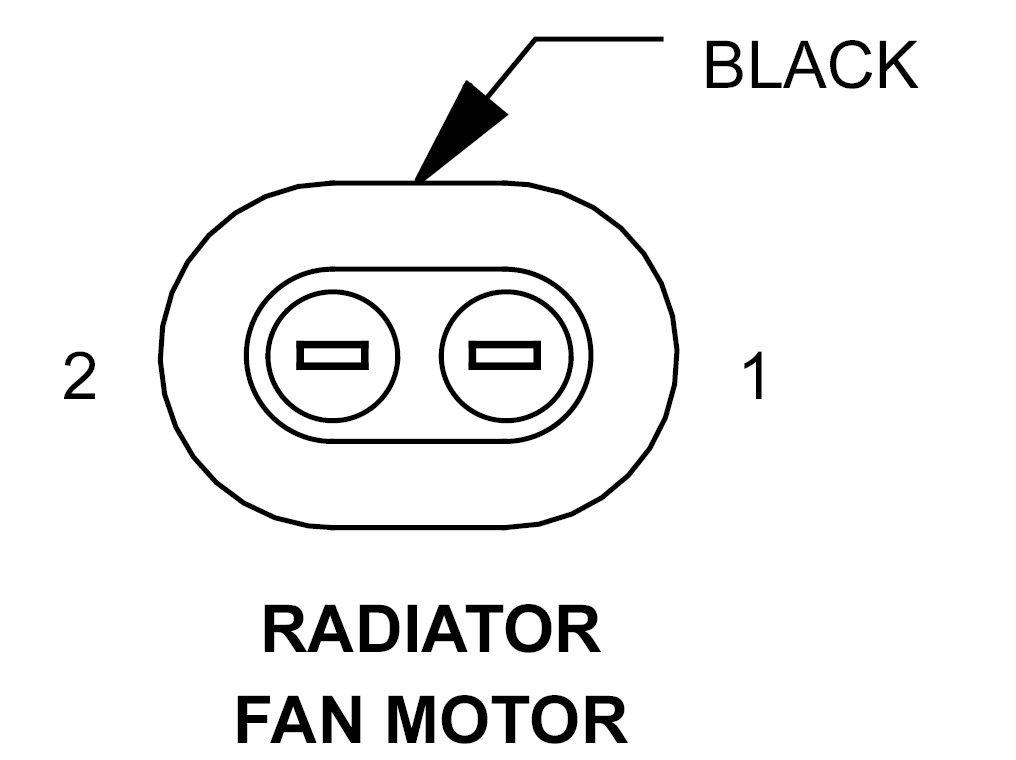

Radiator Fan Motor Connector End View
RADIATOR FAN MOTOR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
8BR/BK
RADIATOR FAN CONTROL MODULE GROUND
2
8BK/DG
RADIATOR FAN CONTROL MODULE OUTPUT
Courtesy of CHRYSLER CORP.
