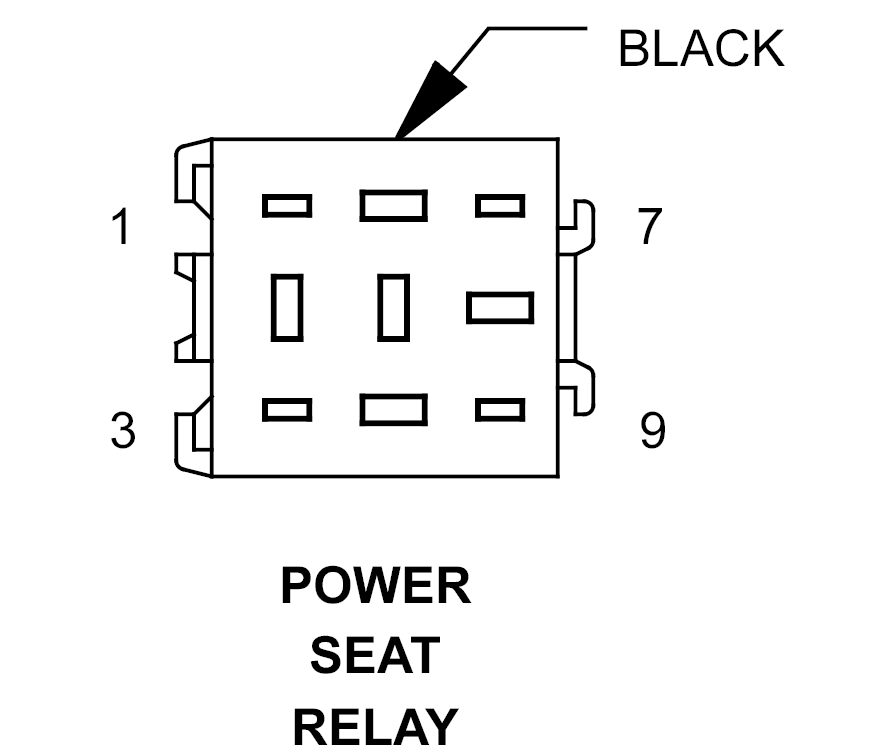

Power Seat Relay Connector End View
POWER SEAT RELAY - BLACK 9-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR/GY |
LEFT DOOR AJAR SWITCH SENSE |
| 2 |
14RD/WT |
POWER SEAT RELAY SWITCHED OUTPUT |
| 3 |
18RD |
FUSED B(+) |
| 4 |
18PK/YL |
FUSED IGNITION SWITCH OUTPUT |
| 5 |
- |
- |
| 6 |
18BR |
GROUND |
| 7 |
20BR/PK |
RIGHT DOOR AJAR SWITCH SENSE |
| 8 |
14RD |
FUSED B(+) |
| 9 |
- |
- |
