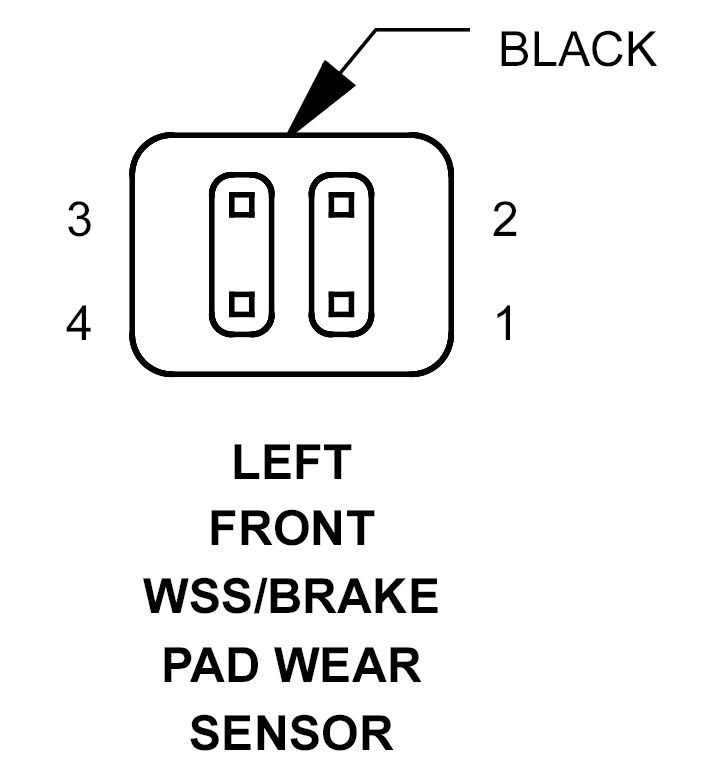

Left Front WSS Brake Pad Wear Sensor Connector End View
LEFT FRONT WSS/BRAKE PAD WEAR SENSOR - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
GROUND |
| 2 |
20BR/DG |
BRAKE PAD WEAR INDICATOR DRIVER |
| 3 |
20DG |
LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 4 |
20BR |
LEFT FRONT WHEEL SPEED SENSOR SIGNAL |
