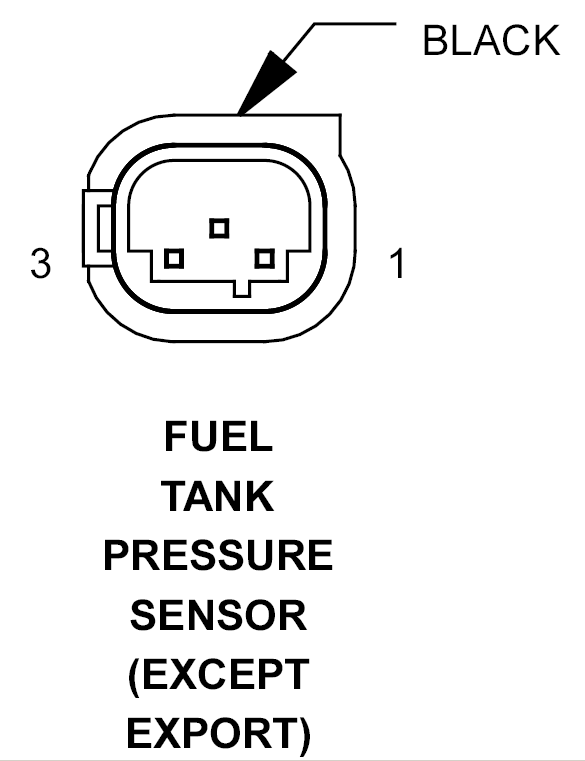

Fuel Tank Pressure Sensor (Except Export) Connector End View
FUEL TANK PRESSURE SENSOR - BLACK 3-WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20DG |
FUEL TANK PRESSURE SENSOR SIGNAL |
| 2 |
20BR/YL |
SENSOR GROUND |
| 3 |
20BK/RD |
5 VOLT SUPPLY |
