Dome Lamp Connector End View

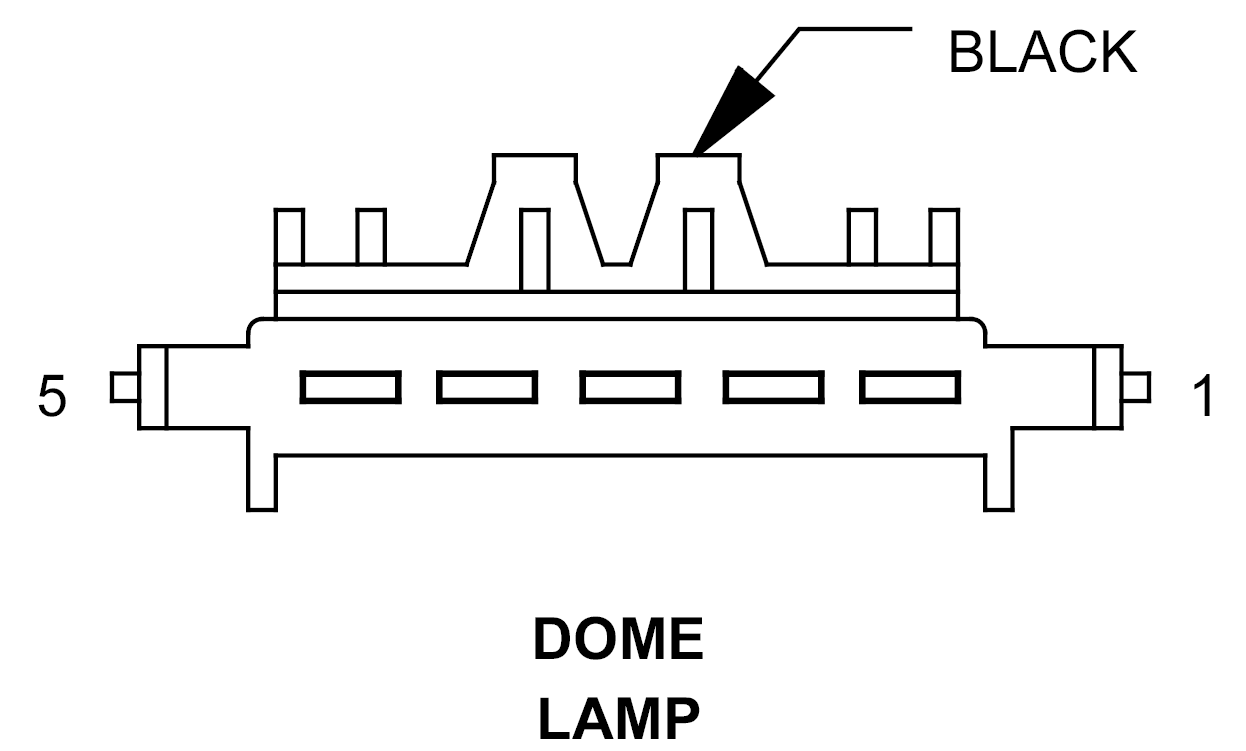

DOME LAMP - BLACK 5-WAY

GZH780097Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR/YL CARGO LAMP CONTROL
2 18BR GROUND
3 18BL/BR DOME LAMP CONTROL
4 18RD/GY FUSED B(+)
5 - -
