Coil On Plug 5 Connector End View

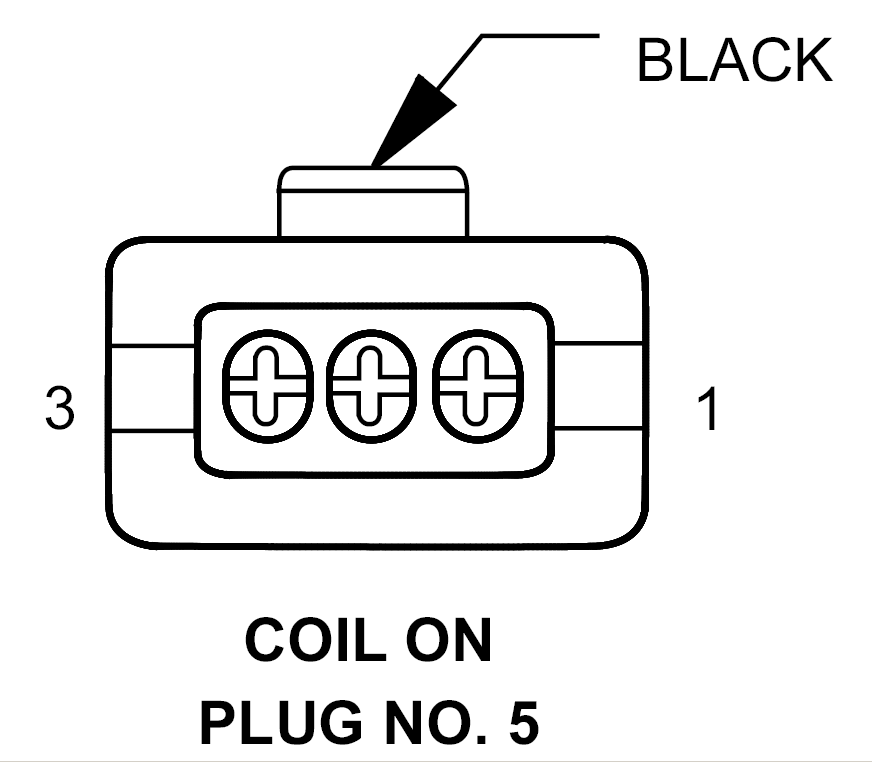

COIL ON PLUG NO. 5 - BLACK 3-WAY

GZH780088Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18VT COIL ON PLUG DRIVER NO. 5
2 18BK/YL FUSED IGNITION SWITCH OUTPUT
3 18VT/WT COIL ON PLUG DRIVER NO. 5
