Coil On Plug 2 Connector End View

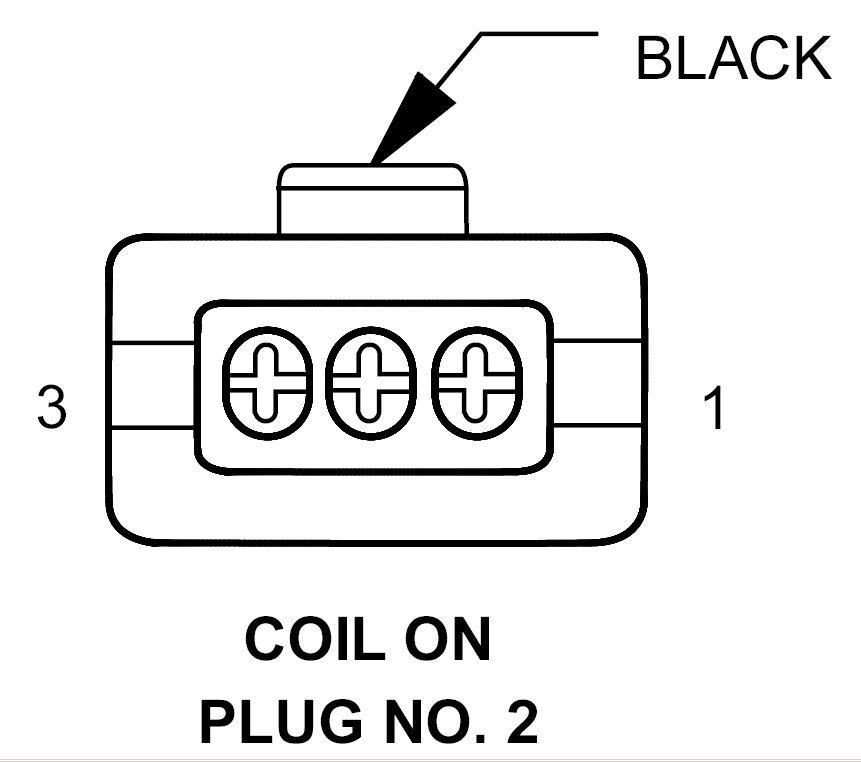

COIL ON PLUG NO. 2 - BLACK 3-WAY

GZH780085Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18YL COIL ON PLUG DRIVER NO. 2
2 18BK/DG FUSED IGNITION SWITCH OUTPUT
3 18YL/WT COIL ON PLUG DRIVER NO. 2
