Coil On Plug 1 Connector End View

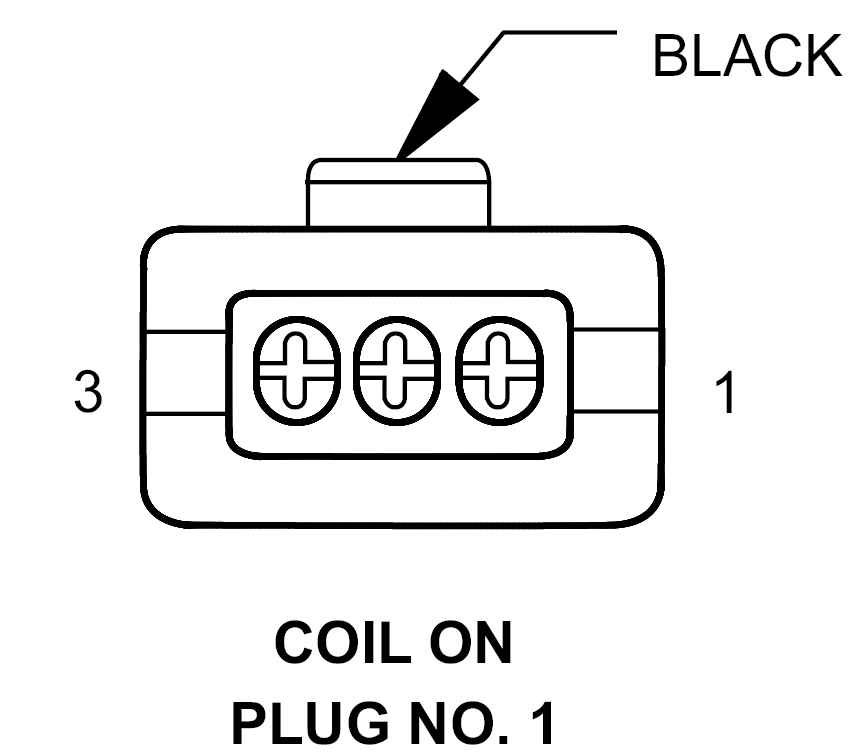

COIL ON PLUG NO. 1 - BLACK 3-WAY

GZH780084Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BK COIL ON PLUG DRIVER NO. 1
2 18BK/DG FUSED IGNITION SWITCH OUTPUT
3 18BK/WT COIL ON PLUG DRIVER NO. 1
