Blower Motor Resistor Connector End View

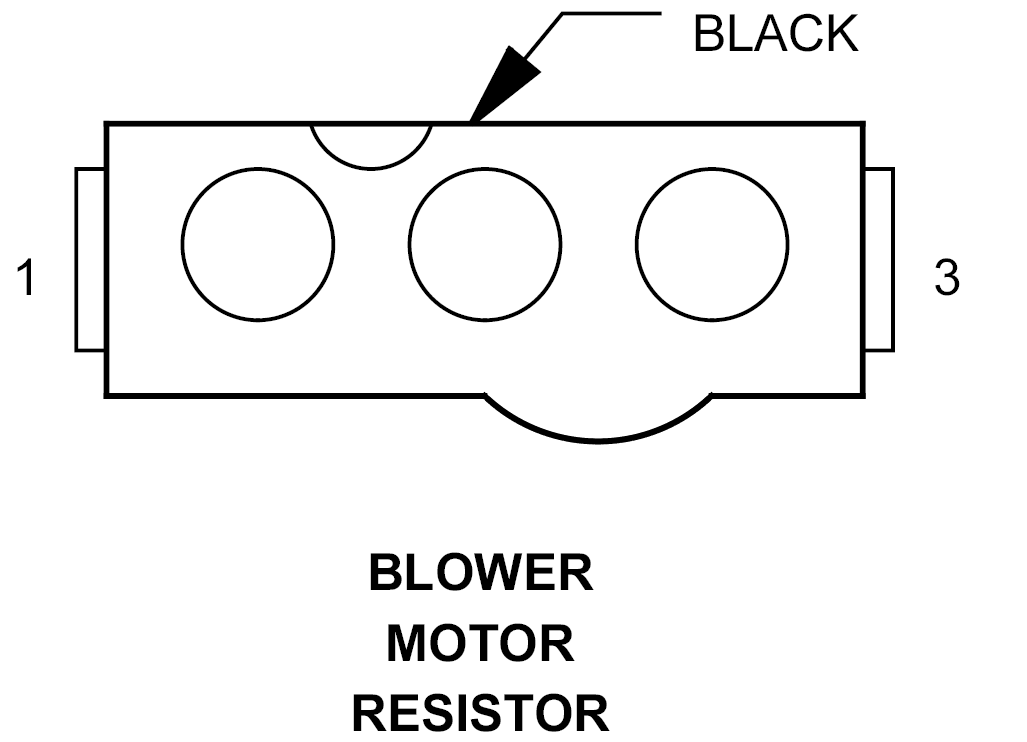

BLOWER MOTOR RESISTOR - BLACK 3-WAY

GZH780019Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 14BR BLOWER MOTOR GROUND
2 20WT/PK BLOWER MOTOR CONTROL
3 14RD FUSED B(+)
