Removal - Power Window Switch

WARNING: REFER TO RESTRAINTS - SERVICE INFORMATION BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY. Refer to WARNING .

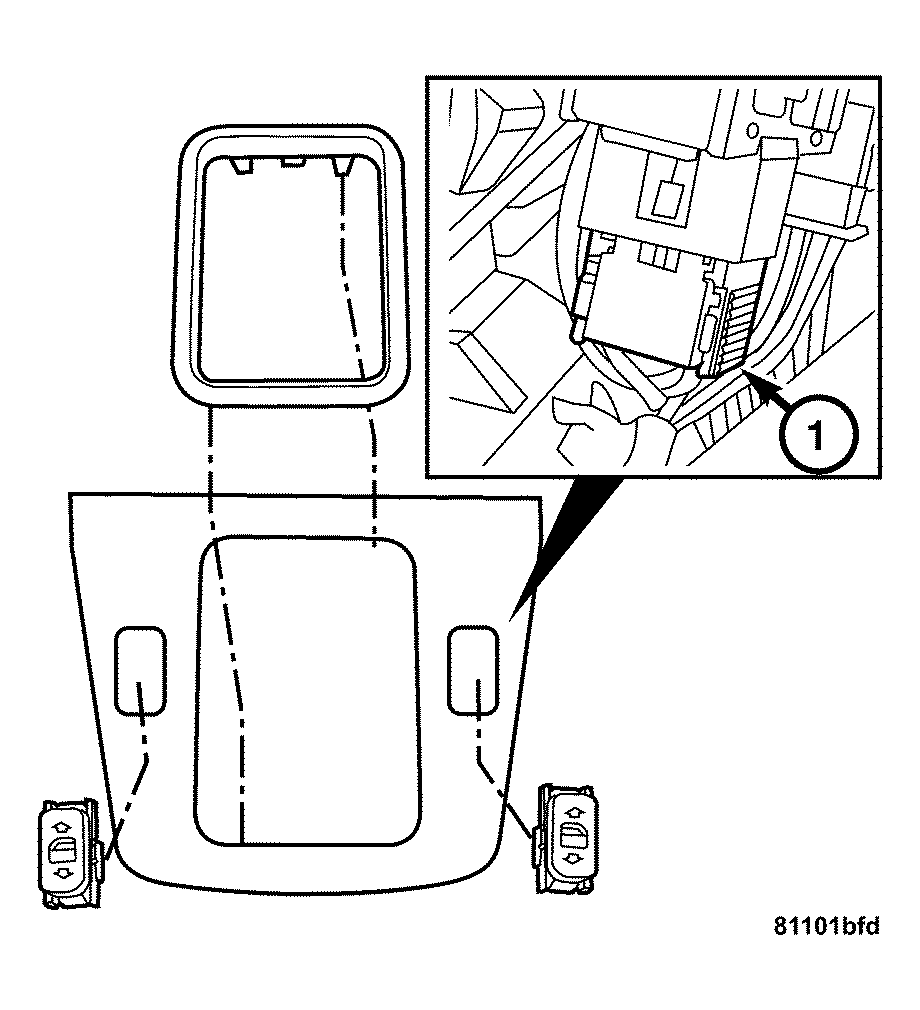

Fig 1: Identifying Power Window Switch Harness Connector

Courtesy of CHRYSLER LLC

Disconnect the negative battery cable.
Remove the shifter cover trim panel. Refer to REMOVAL .
Disconnect the power window switch harness connector (1).
Squeeze the clips together and remove the power window switch from the shifter cover trim panel.
