Sentry Key Remote Entry Module

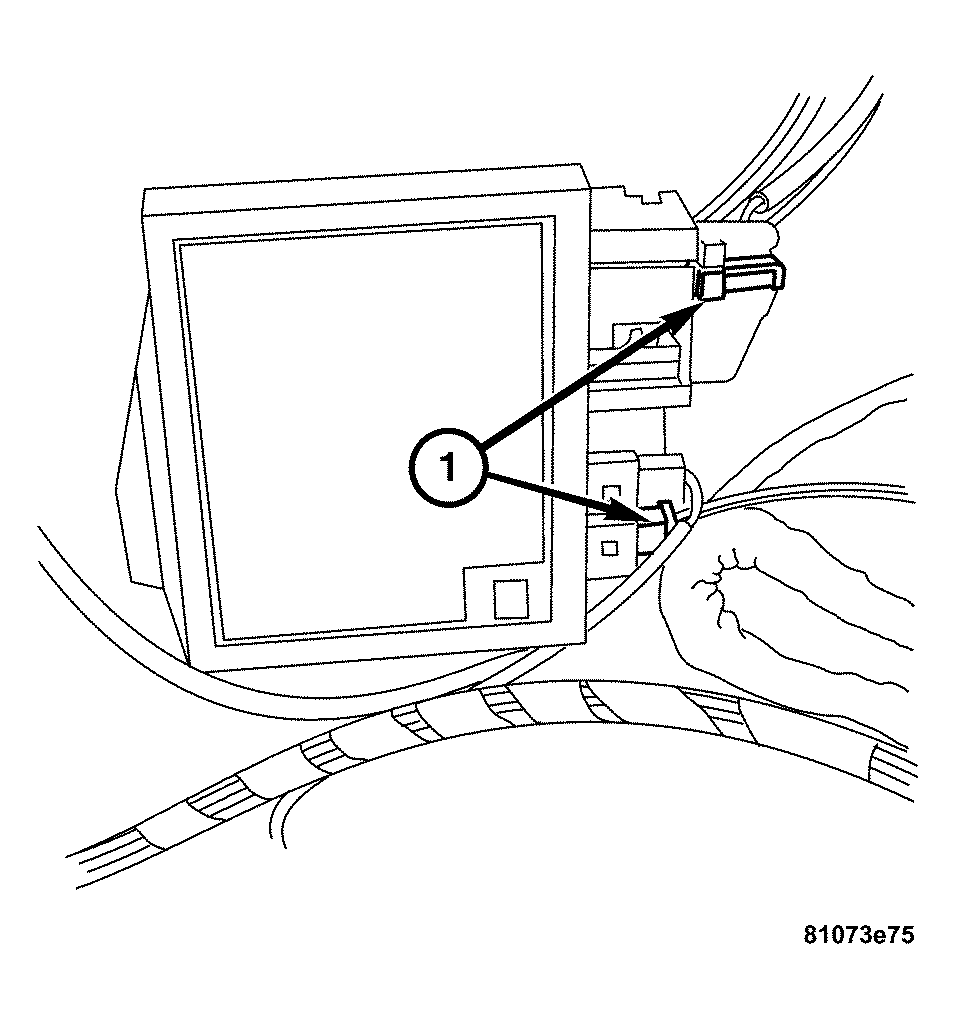

Fig 1: Identifying SKREEM Harness Connectors
GC0033562Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster to gain access to the SKREEM module. Refer to REMOVAL .
  3. Disconnect the 2-pin CAN bus connector and the 18-pin electrical connector (1) from the SKREEM.
  4. Disconnect the 2-pin connector for the sentry key antenna ring.
  5. Press the retaining tabs apart.
  6. Remove the SKREEM from the base plate.
