Removal - Washer Fluid Level Switch

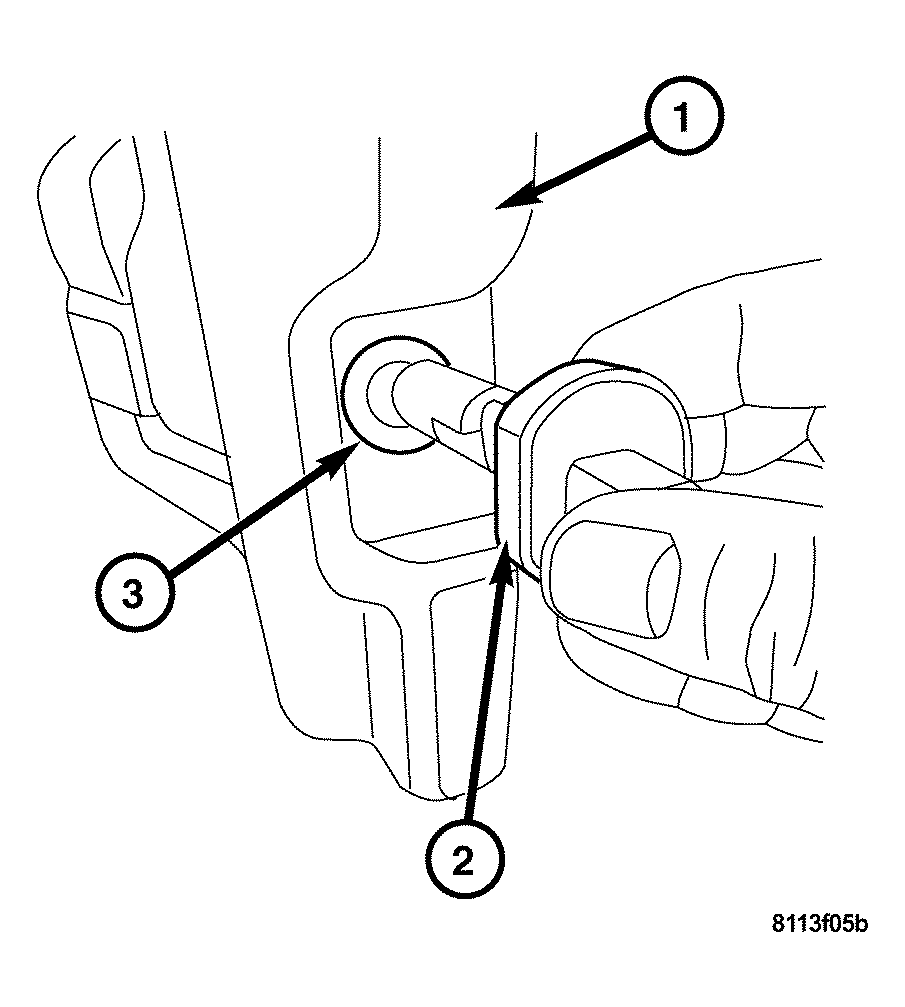

Fig 1: Removing/Installing Washer Fluid Level Switch
GC0035800Courtesy of CHRYSLER LLC
  1. Remove the washer reservoir. See REMOVAL .
  2. Gently pry outward on the body of the washer fluid level switch (2) and pull it away from the rubber grommet (3).
  3. Remove the washer fluid level switch (2) from the washer reservoir (1).
