Description - Multi-Function Switch

WARNING: REFER TO RESTRAINTS BEFORE ATTEMPTING ANY DOOR, SEAT, STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

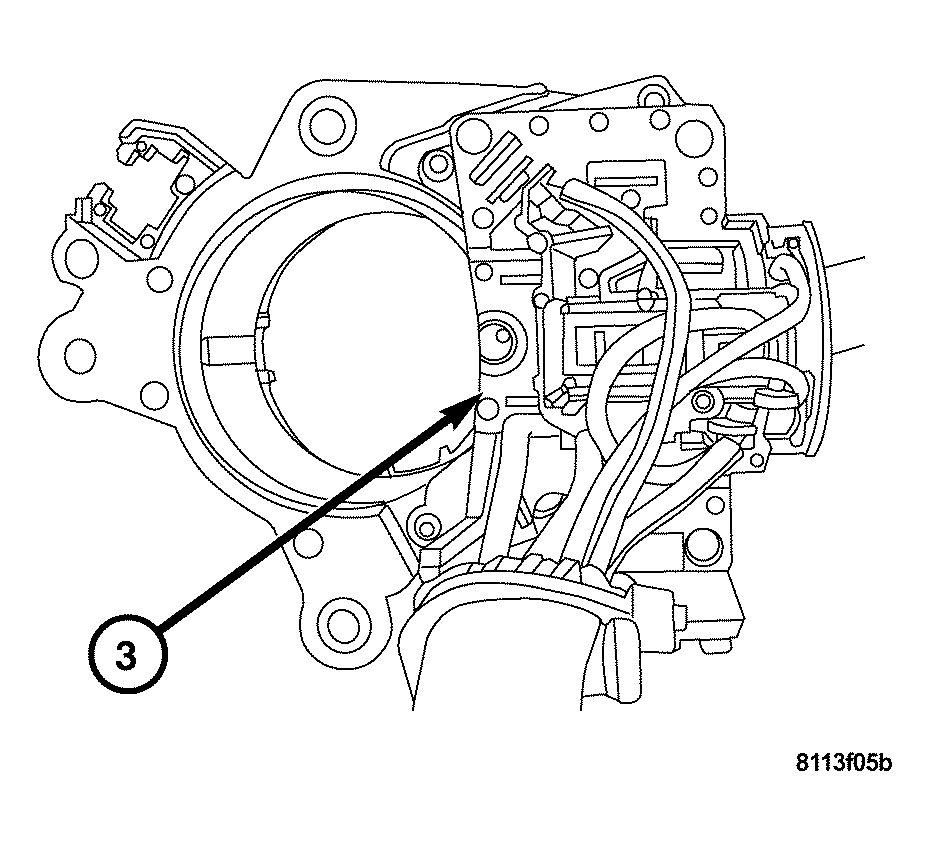

Fig 1: Locating Multifunction Switch And Control Circuitry

Courtesy of CHRYSLER LLC

The Multifunction Switch and control circuitry (3) is concealed below the steering column shrouds and will operate when the ignition switch is turned to the ACC or ON/RUN positions. Fuse 32 in the Underhood Accessory Fuse Block protect the circuitry of the Wiper System and the vehicle.

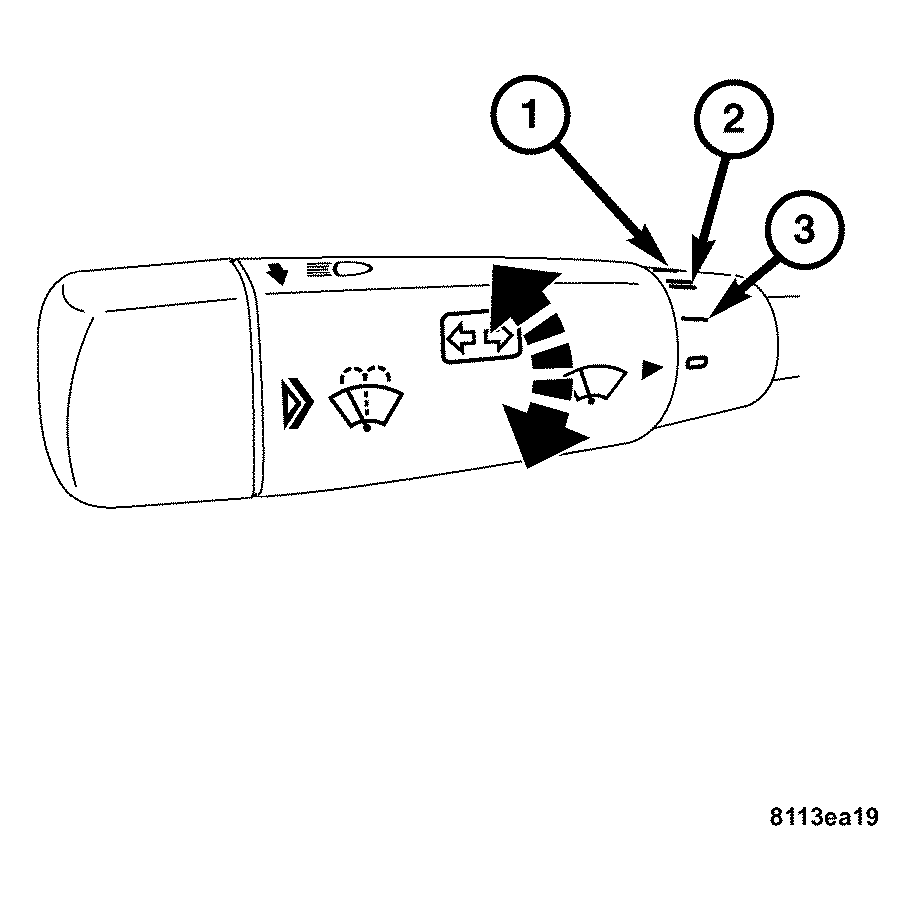

Fig 2: Identifying Wiper System Speeds On Switch

Courtesy of CHRYSLER LLC

The Wiper System in addition to HI (1) and LO (2) speeds, has an intermittent delay (3) mode. The wipers will return to the park position when the wiper portion of the switch is rotated to the OFF position. A mist function can be operated by briefly pressing the end of the Multifunction Switch lever inward. In addition to operating the Wiper System, the Multifunction Switch also operates high beam/flash to pass and turn signals.

The Multifunction Switch cannot be adjusted, or repaired. If faulty, worn, or damaged, the entire unit must be replaced. For complete Multifunction Switch removal procedures, refer to REMOVAL .
