Powertrain Control Module - RHD

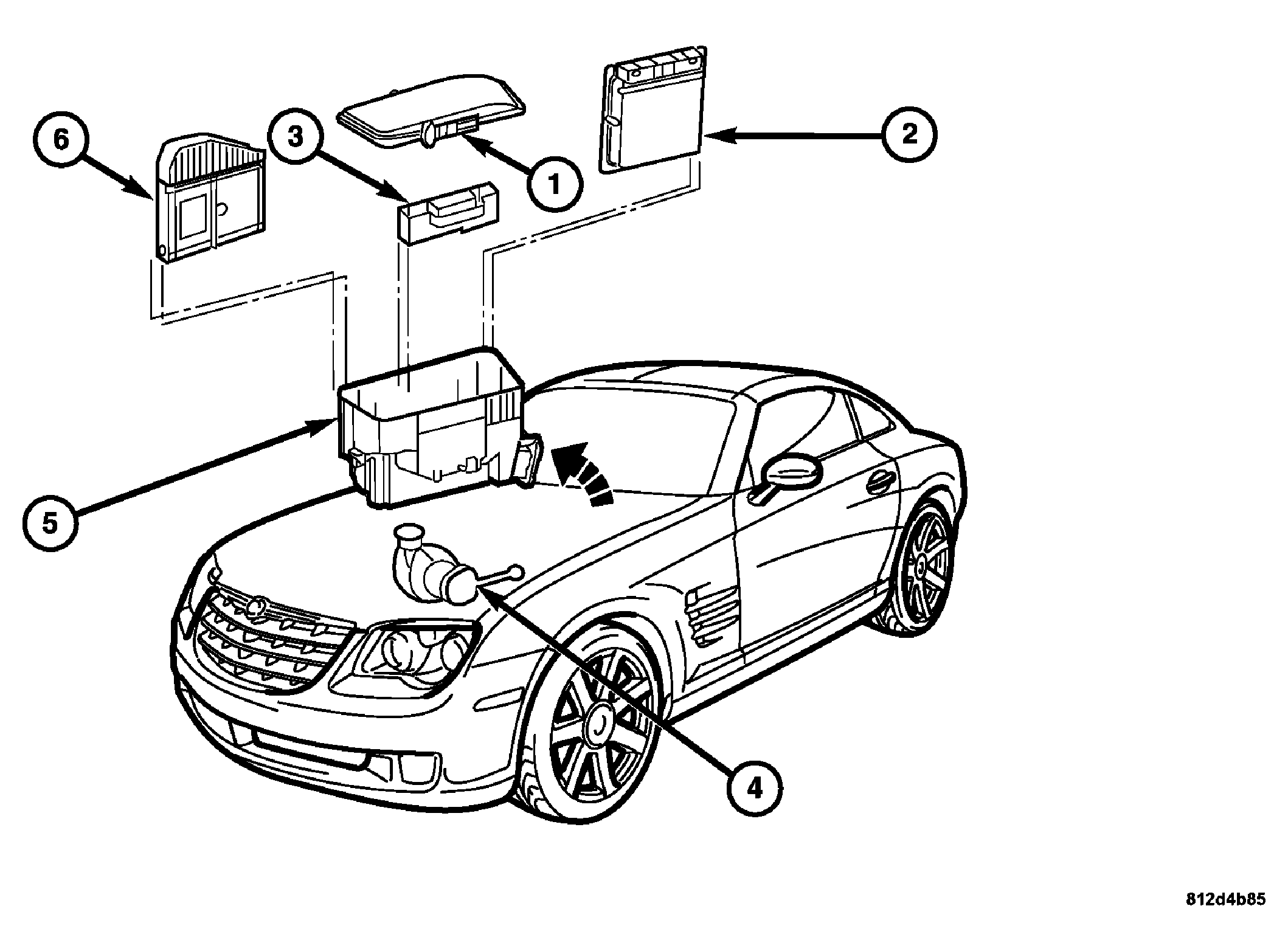

Fig 1: Identifying Control Modules & Components
GC0034988Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Slide the clips forward to remove the plastic control module box cover (1).
  3. Holding the metal powertrain control module retaining clip back, pull the powertrain control module (2) up and out of the control module box (5).
  4. Disconnect the PCM harness electrical connector and remove the powertrain control module (2).
