Powertrain Control Module - LHD

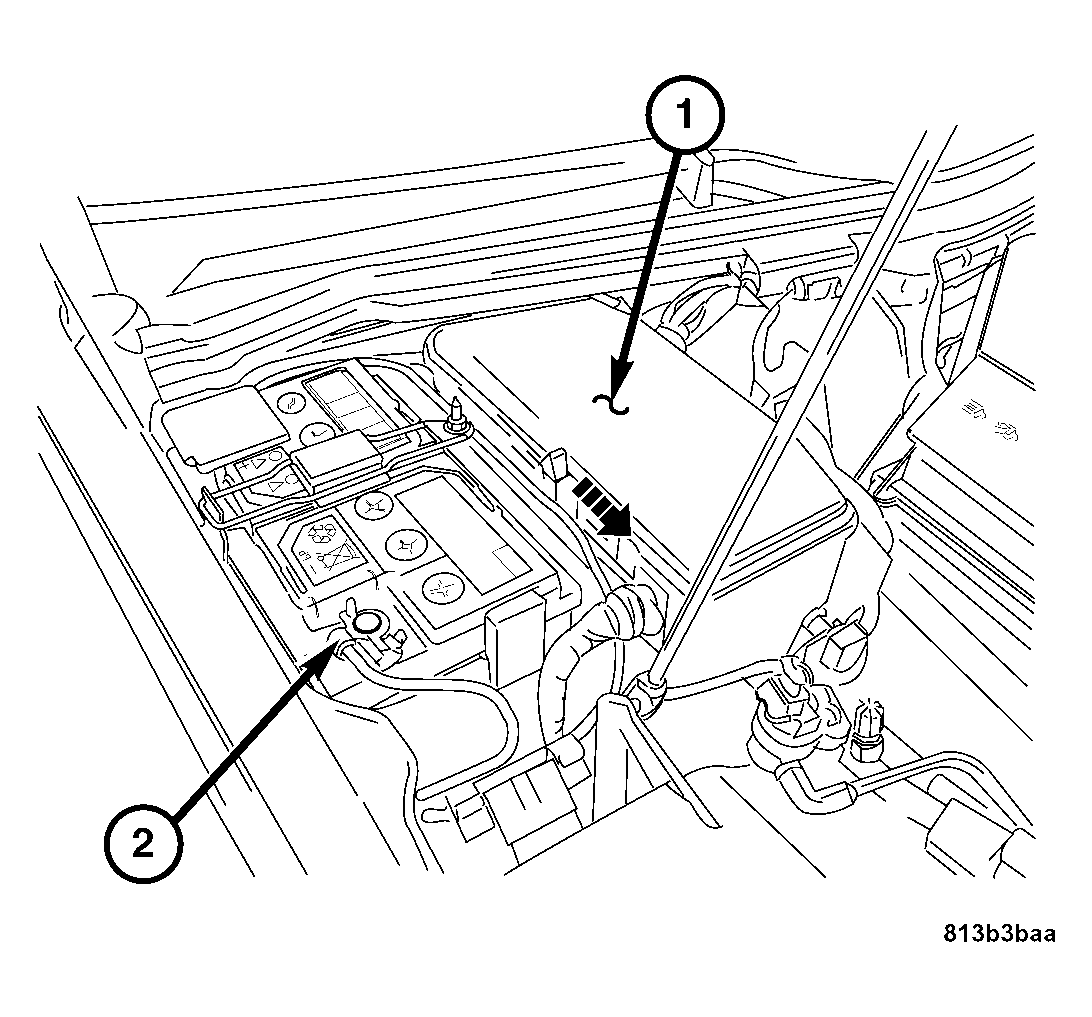

Fig 1: Identifying Plastic Control Module Box Cover & Negative Battery Cable
GC0034985Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable (2).
  2. Slide the clips forward to remove the plastic control module box cover (1).

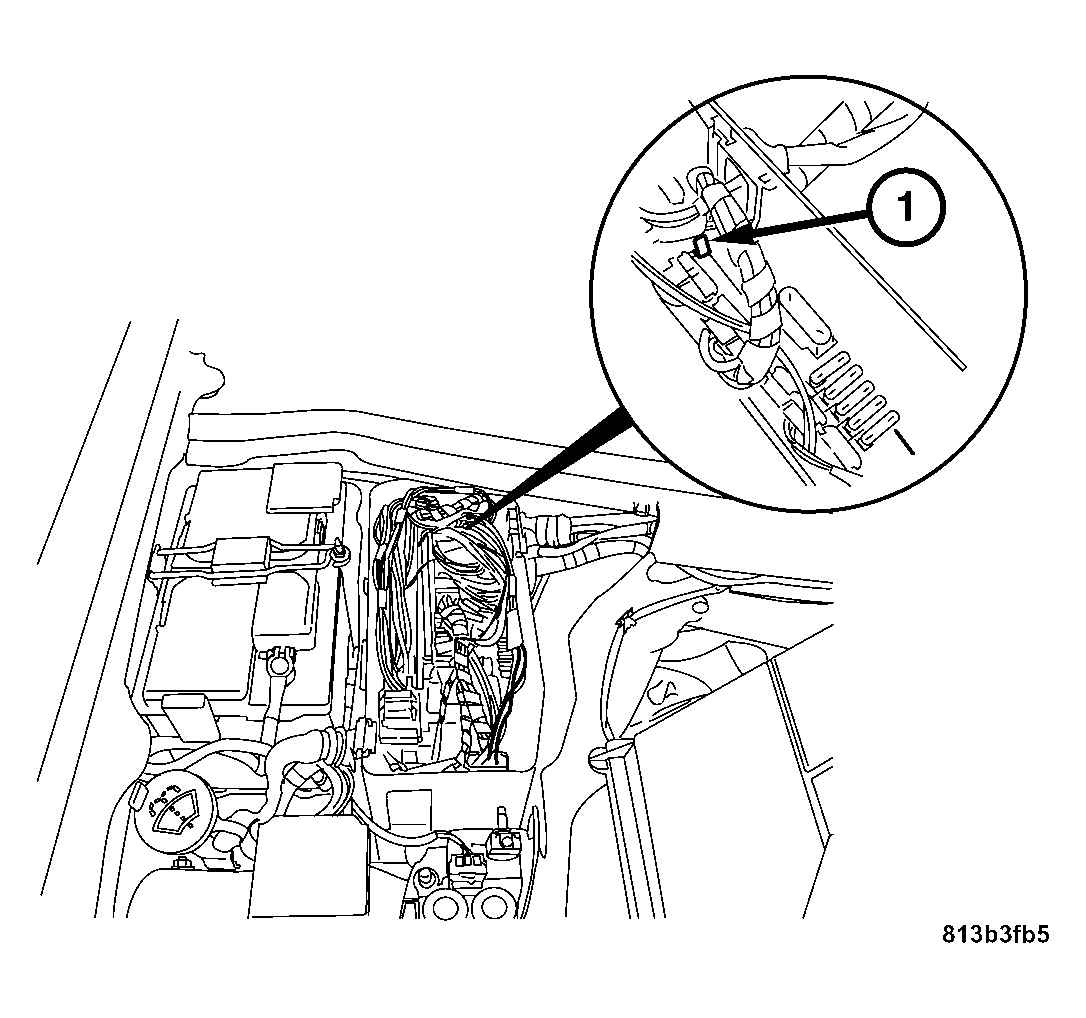

    Fig 2: Identifying Metal Retaining Clip
    GC0034986Courtesy of CHRYSLER LLC
  3. Holding the metal powertrain control module retaining clip (1) back, pull the powertrain control module up and out of the control module box.

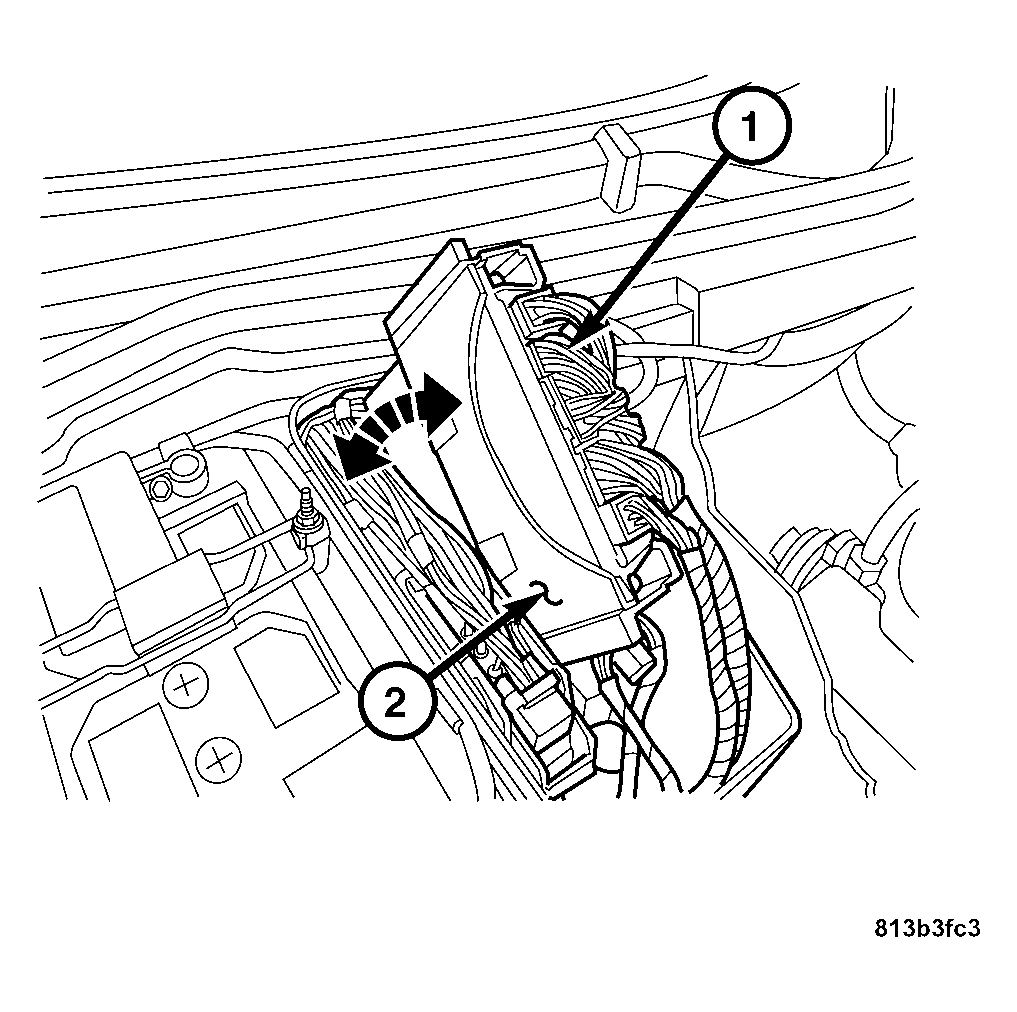

    Fig 3: Removing PCM & Electrical Connectors
    GC0034987Courtesy of CHRYSLER LLC
  4. Disconnect the electrical connectors (1) and remove the powertrain control module (2).
