Installation - Ignition Lock Cable

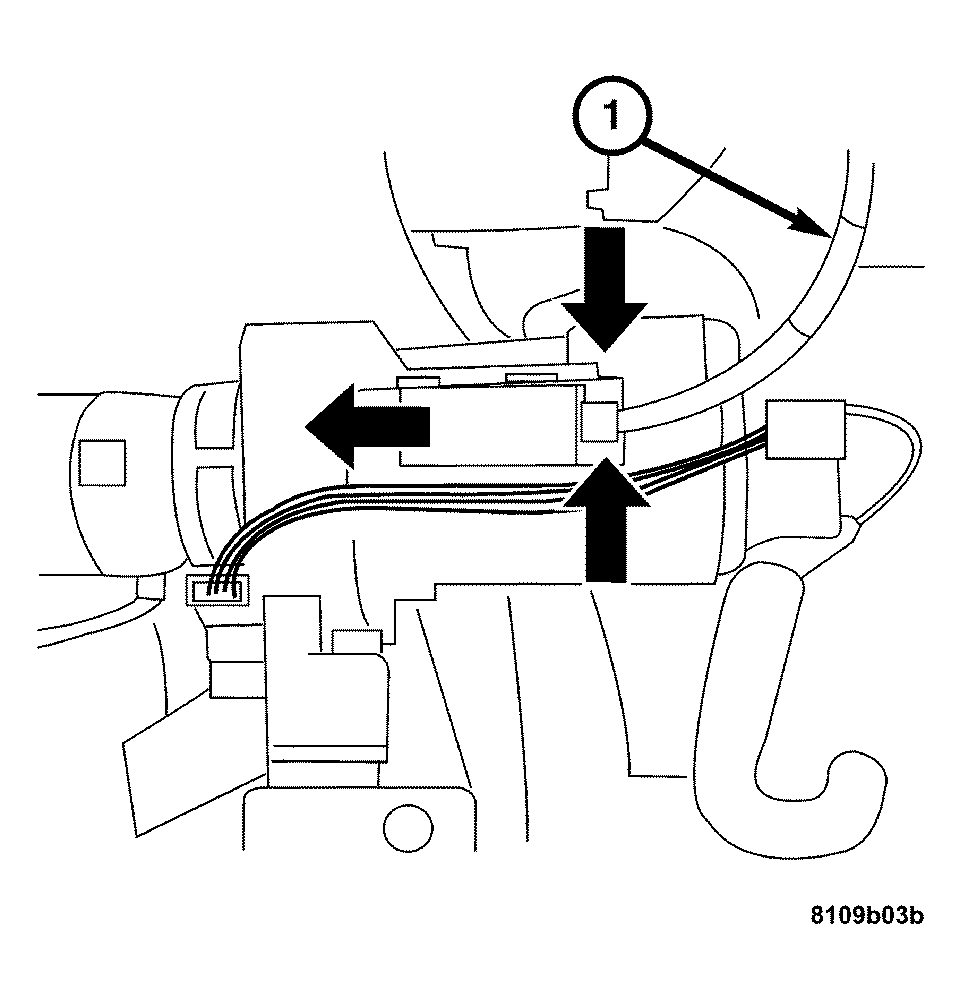

Fig 1: Removing/Installing Ignition Lock Cable To Ignition/Starter Switch

Courtesy of CHRYSLER LLC

Install the ignition lock cable (1) to the ignition/starter switch by sliding it into the retaining slot until the tabs click.

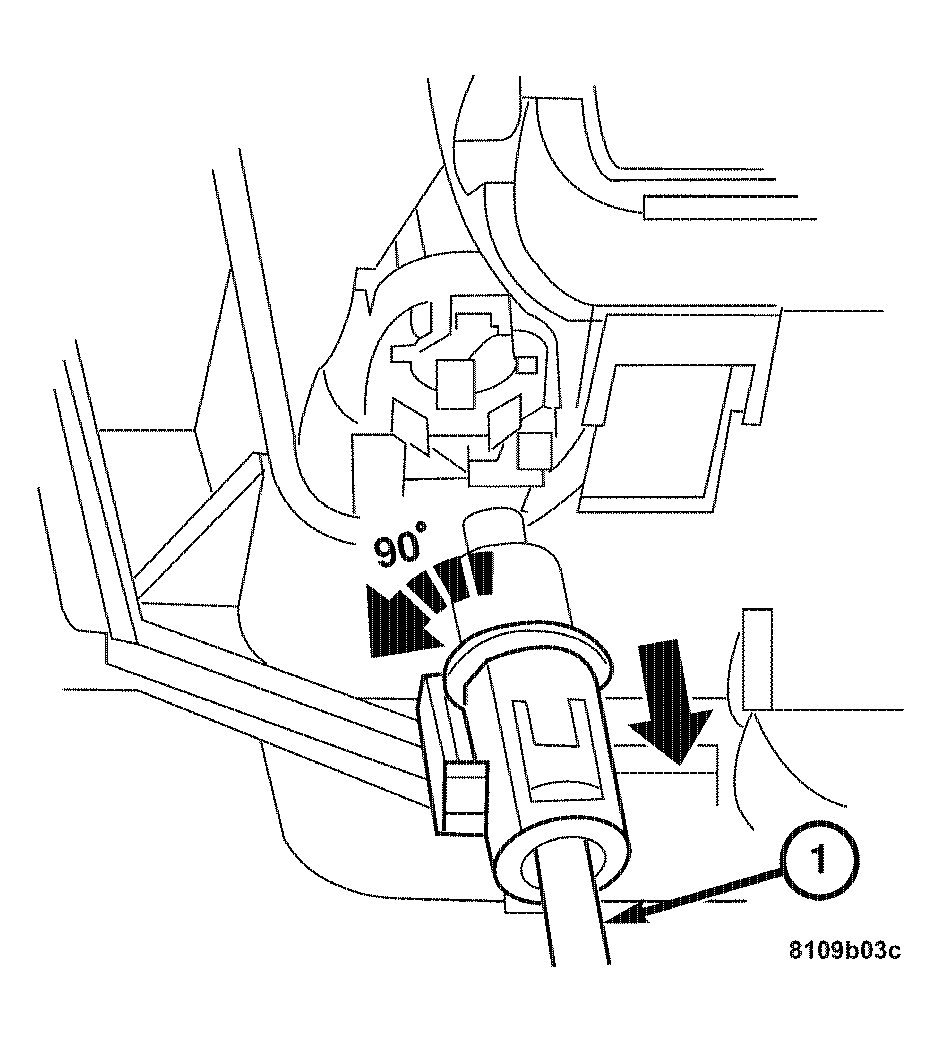

Fig 2: Removing/Installing Ignition Lock Cable
Courtesy of CHRYSLER LLC
Install the ignition lock cable (1) to the shift lever assembly by inserting it into the mounting hole and then turning it 90° to the right.
Turn the ignition switch to the OFF/LOCK position. It should only be possible to move the shift lever out of the Park position when the ignition switch is in the ON/RUN position and the brake pedal is depressed. It should only be possible to remove the ignition key when the shift lever is in the Park position and the ignition switch is in the OFF/LOCK position.

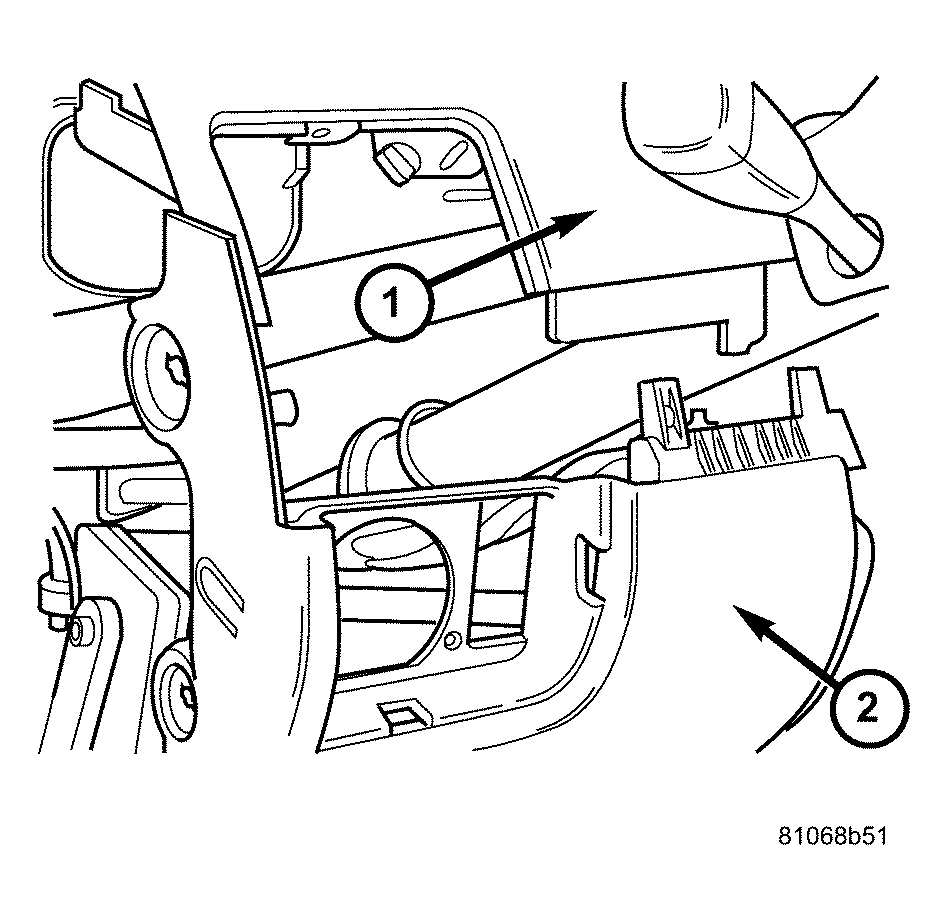

Fig 3: Identifying Cluster Cover & Lower Panel
Courtesy of CHRYSLER LLC
Install the lower instrument panel (2). Refer to INSTALLATION .

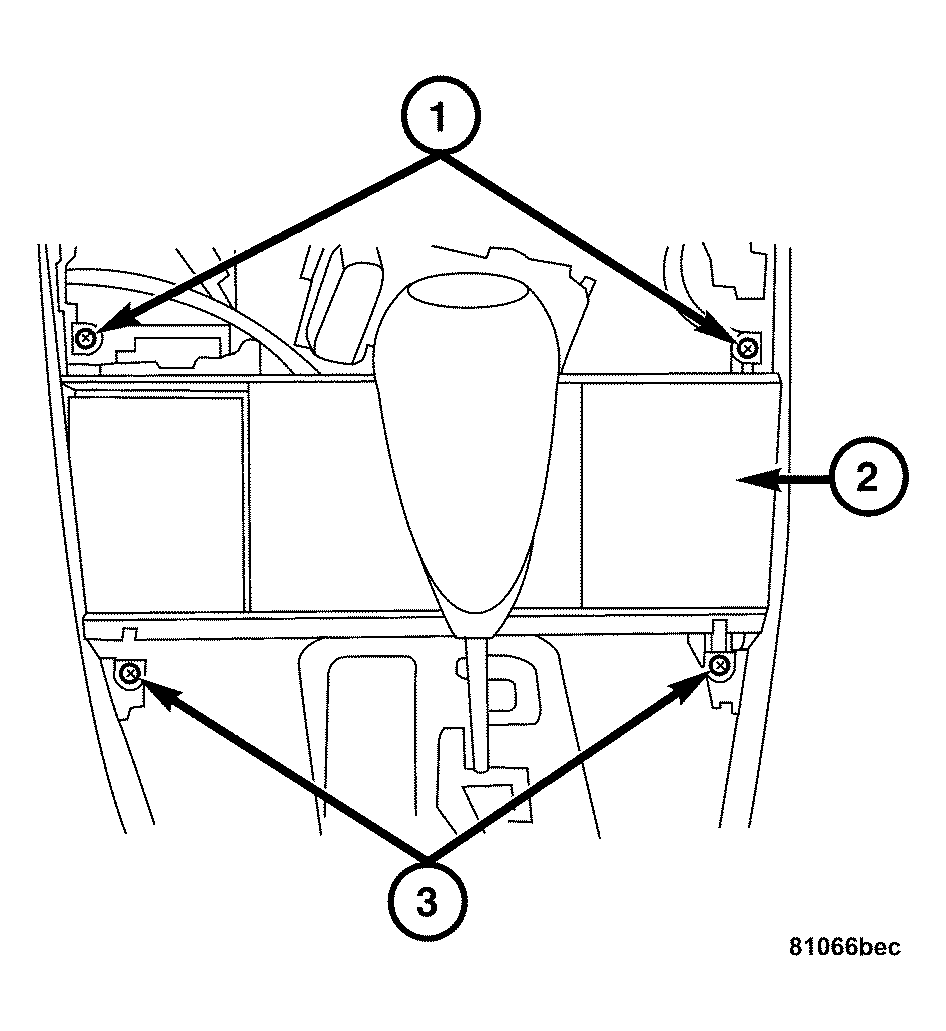

Fig 4: Removing/Installing Ash Tray
Courtesy of CHRYSLER LLC
Install the ash tray (2) in the front center console.

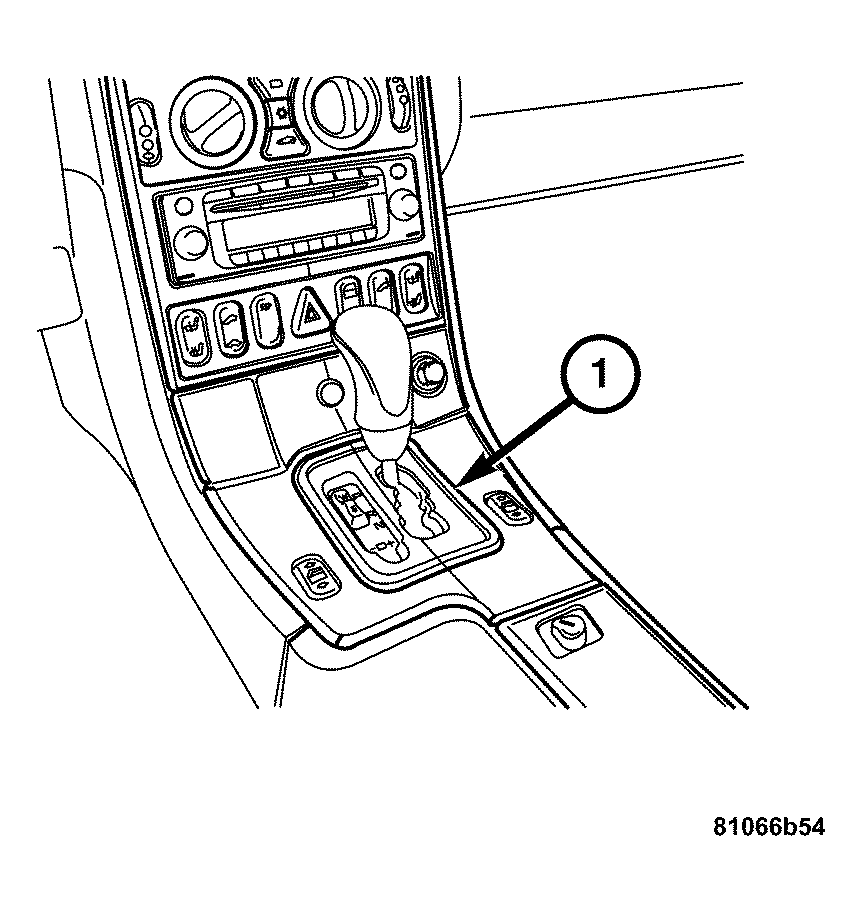

Fig 5: Identifying Shift Lever Cover
Courtesy of CHRYSLER LLC
Install the shifter cover (1). Refer to INSTALLATION .
