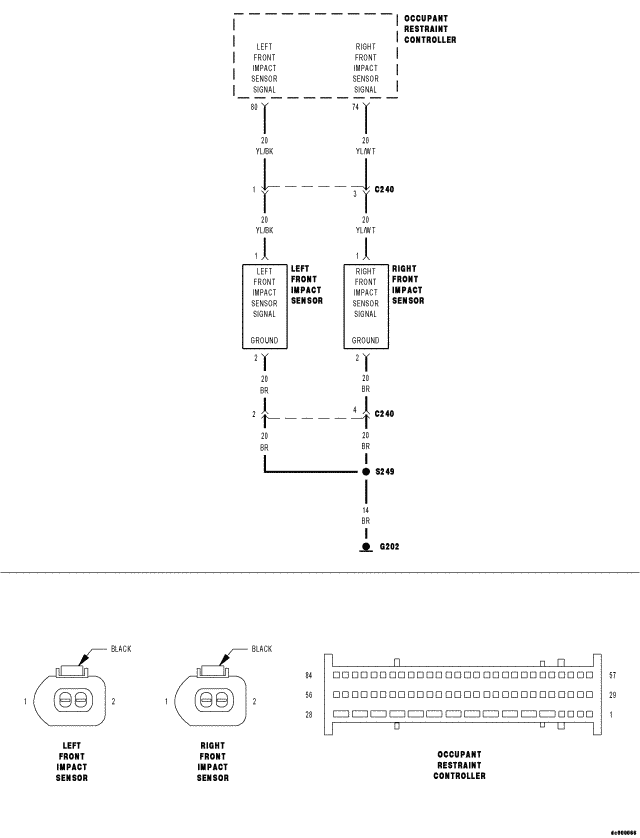

Home >> Chrysler >> 2007 >> Crossfire Base, 2D Convertible >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> DTCS B1001 To B1073 >> B1038|B1039|B103A|B103B|B103C|B103D-Right Front Impact Sensor >> Circuit Schematic
