Washer Fluid Level Switch Connector End View

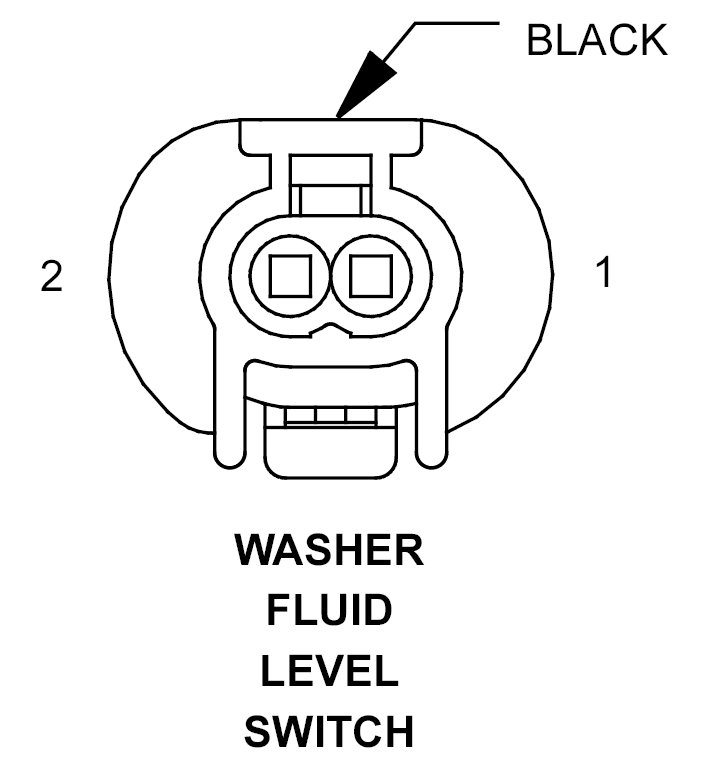

WASHER FLUID LEVEL SWITCH - BLACK 2-WAY

GZH780255Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR COOLANT/WASHER LEVEL RETURN
2 20BR/BL COOLANT/WASHER LEVEL COMBINATION
