Trunk Latch Module (Roadster (Convertible)) Connector End View (C1)

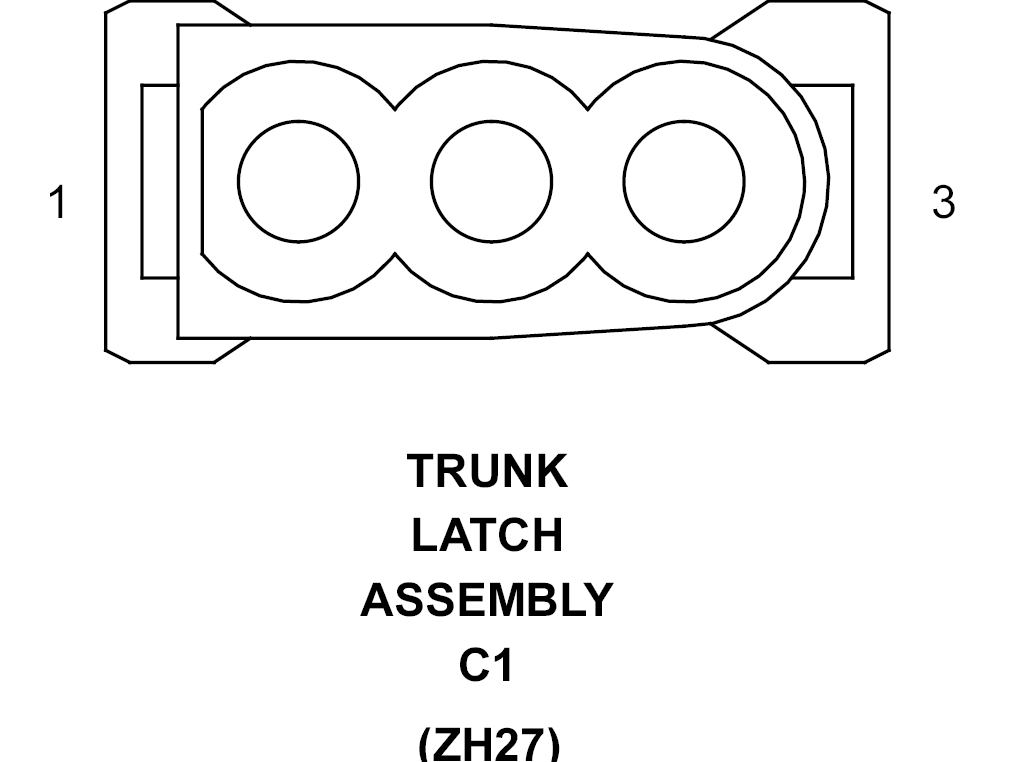

TRUNK LATCH ASSEMBLY C1 - 3-WAY (ZH27)

GZH780252Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20BK/VT TRUNK LATCH UNLOCKED SIGNAL
3 20BR/VT TRUNK LATCH LOCKED SIGNAL
