Key In Ignition Switch Connector End View

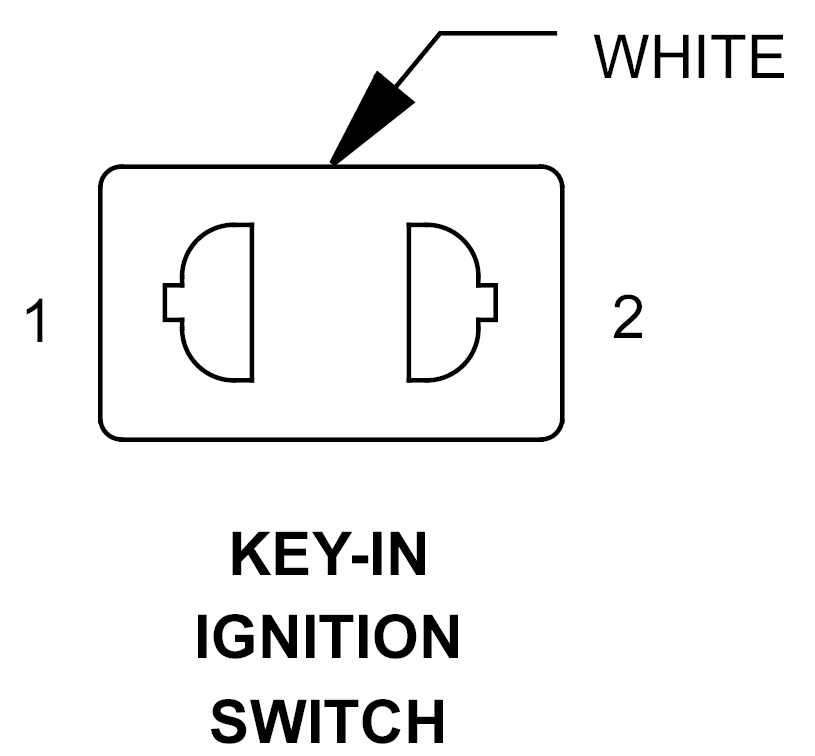

KEY-IN IGNITION SWITCH - WHITE 2-WAY

GZH780136Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR/GY KEY-IN IGNITION SWITCH SENSE
2 20RD/YL FUSED B(+)
