Intrusion Sensor (Export) Connector End View

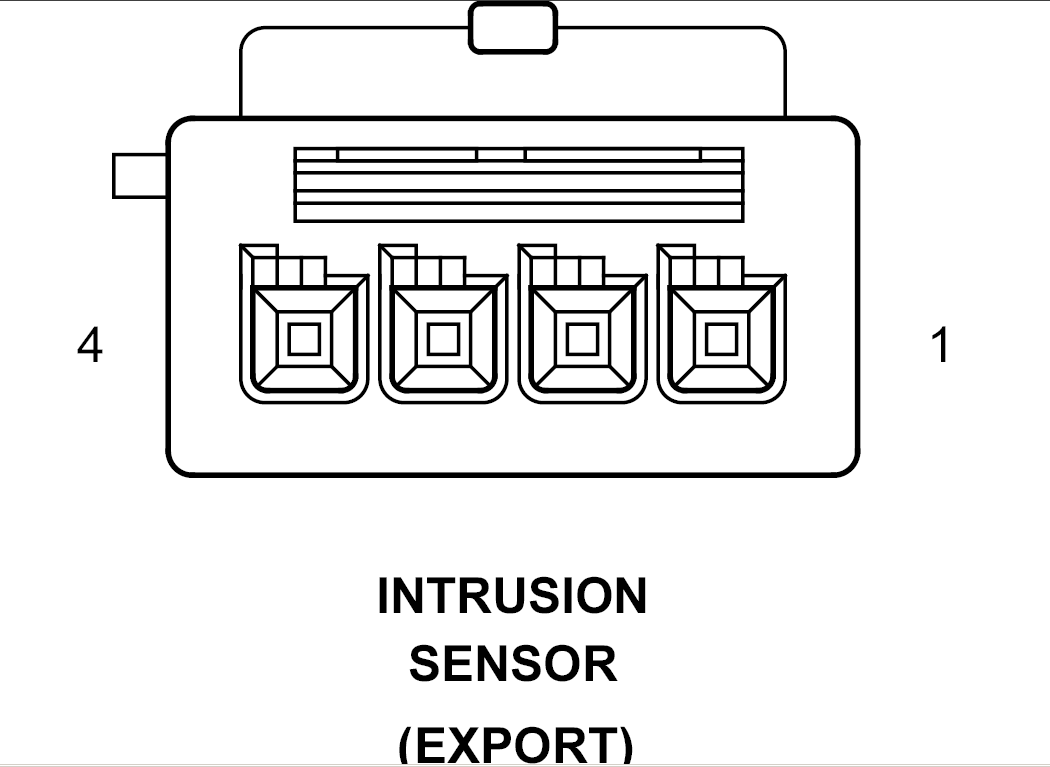

INTRUSION SENSOR - 4-WAY (EXPORT)

GZH780135Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20YL INTRUSION SENSOR SIGNAL
3 20PK/RD/WT FUSED B(+)
4 20RD/YL FUSED B(+)
