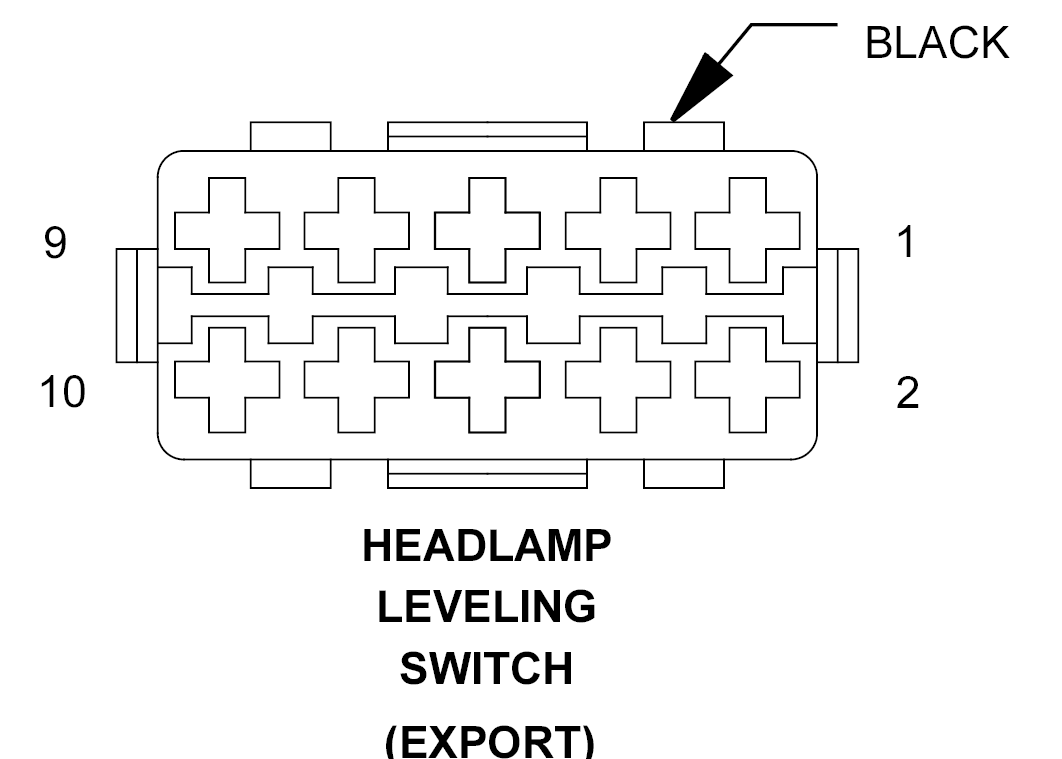

Headlamp Leveling Switch (Export) Connector End View
HEADLAMP LEVELING SWITCH - BLACK 10-WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
18BR |
GROUND |
| 4 |
- |
- |
| 5 |
18YL/VT |
HEADLAMP ADJUST SIGNAL |
| 5 |
18YL/VT |
HEADLAMP ADJUST SIGNAL |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
18DG/WT |
FUSED ILLUMINATION CONTROL MODULE OUTPUT |
| 10 |
- |
- |
