Coolant Level Sensor Connector End View
Coolant Level Sensor Connector End View

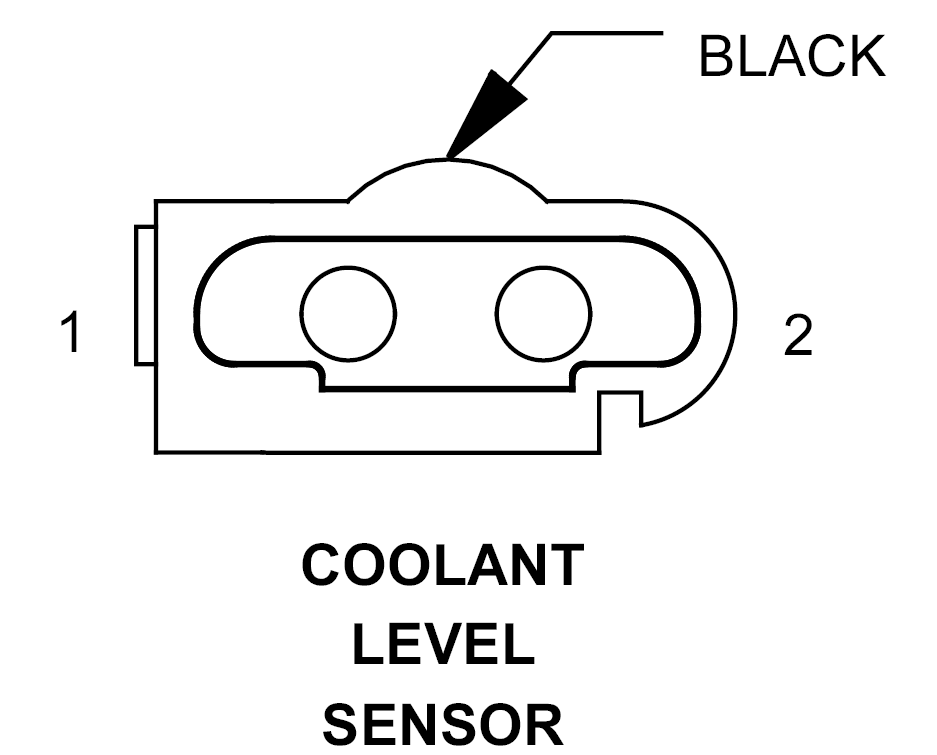

COOLANT LEVEL SENSOR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR/BL
COOLANT/WASHER LEVEL COMBINATION
2
20BR/YL
COOLANT/WASHER LEVEL SIGNAL
