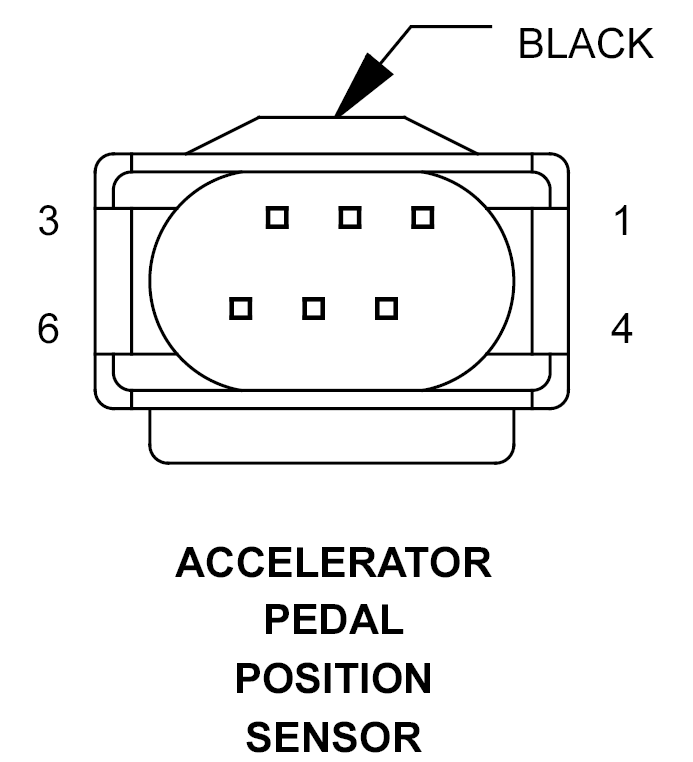

Accelerator Pedal Position Sensor Connector End View
ACCELERATOR PEDAL POSITION SENSOR - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20YL/WT |
ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY |
| 2 |
- |
- |
| 3 |
20OR |
SENSOR GROUND |
| 4 |
20DG |
ACCELERATOR PEDAL POSITION SENSOR SIGNAL NO. 2 |
| 5 |
20GY |
ACCELERATOR PEDAL POSITION SENSOR SIGNAL NO. 1 |
| 6 |
20BK |
SENSOR GROUND |
