Engine Fuse Block Fuses Connector End View

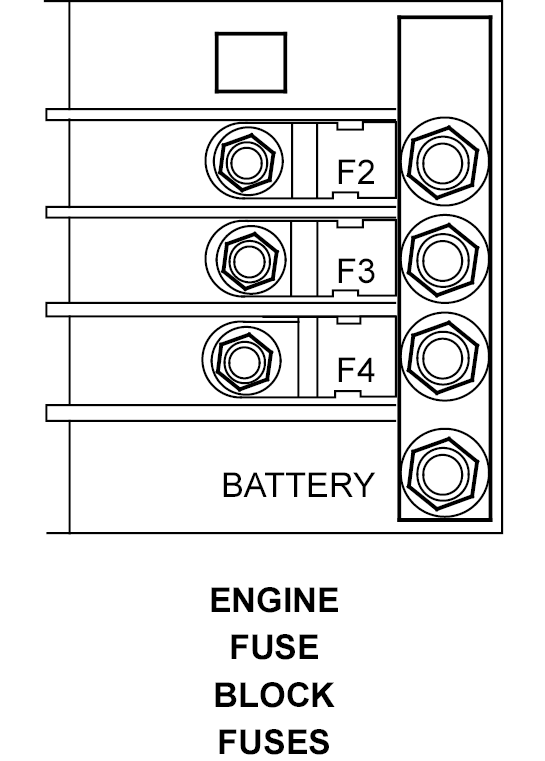

ENGINE FUSE BLOCK FUSES

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	8BK	FUSED B(+)
3	12BK	FUSED B(+)
3	10BK	FUSED B(+)
4	10BK	FUSED B(+)
4	10BK	FUSED B(+)
5	-	-

ENGINE FUSE BLOCK FUSES

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	8BK	FUSED B(+)
3	12BK	FUSED B(+)
3	10BK	FUSED B(+)
4	10BK	FUSED B(+)
4	10BK	FUSED B(+)
5	-	-
