DTC 1173: Steering Angle Sensor Plausibility Error: Notes

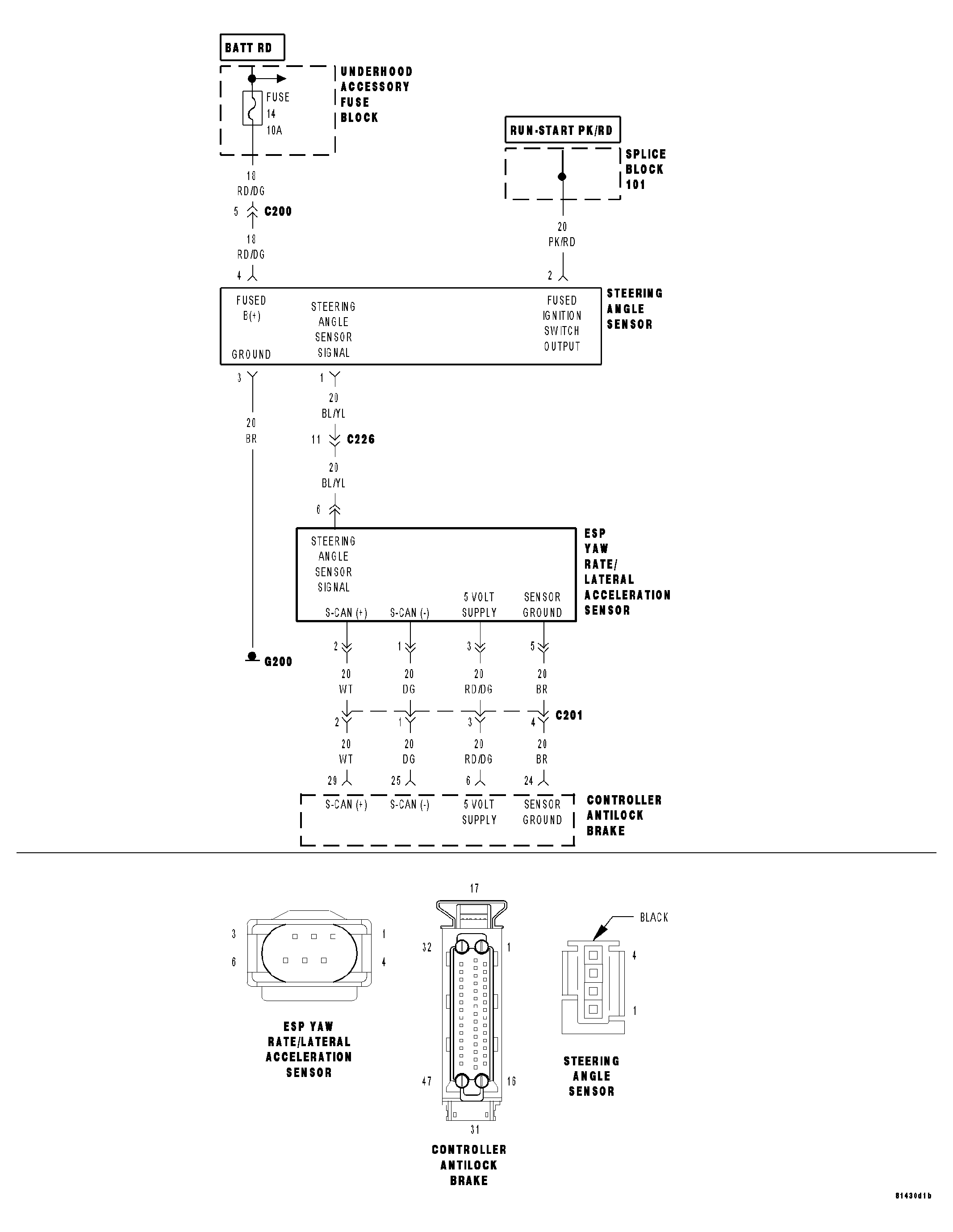

Fig 1: Steering Angle Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: With the ignition On. The Controller Antilock Brake (CAB) monitors the status of the Steering Angle Sensor.
2. Set Condition: The Controller Antilock Brake (CAB) will set this DTC if the calculated steering angle offset is out of the specified range.

For a complete Antilock Brake System (ABS) circuit diagram, see SCHEMATICS AND DIAGRAMS .
