Diagnostic Test

  1. 1) MEASURE THE RESISTANCE OF THE S-CAN (+) CIRCUIT

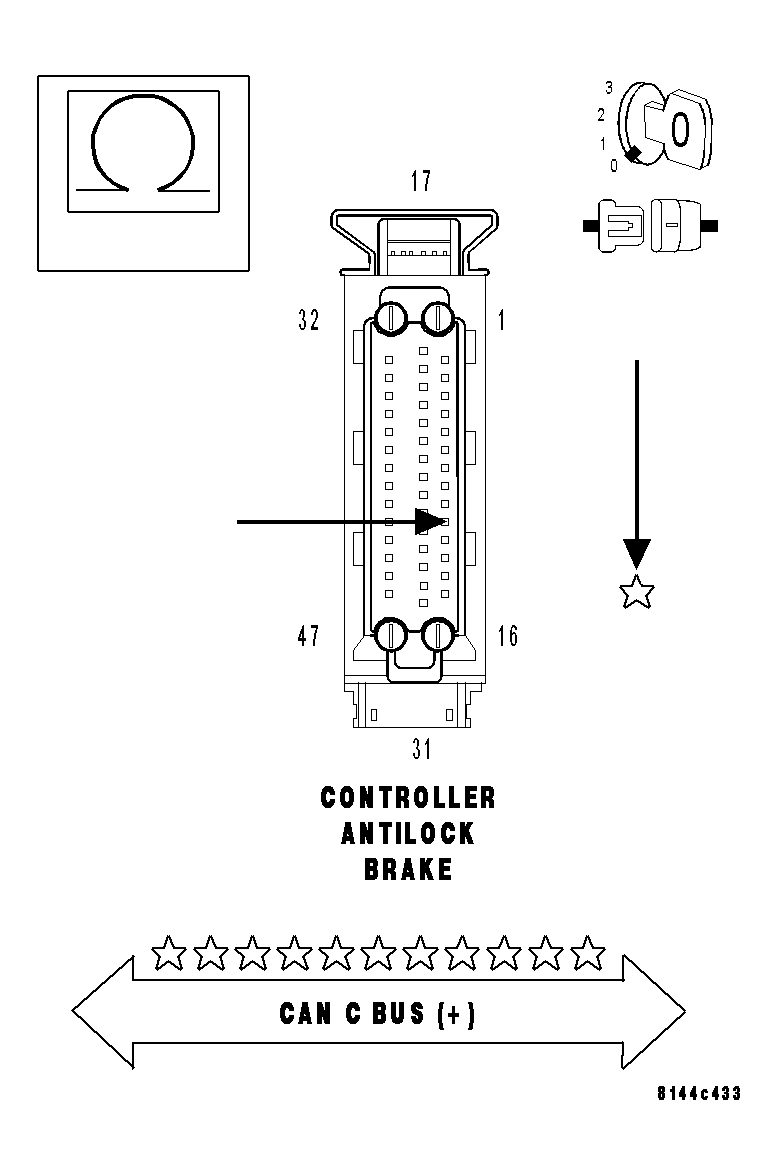

    Fig 1: Checking CAN C BUS (+) Circuit Resistance
    GC0033807Courtesy of CHRYSLER LLC

    Turn the ignition off.

    Disconnect the CAB harness connector.

    Disconnect the Yaw Rate/Acceleration sensor harness connector.

    NOTE: Check connectors - Clean/repair as necessary.

    Measure the resistance of the S-CAN (+) circuit from the CAB harness connector to the Yaw Rate/Acceleration sensor harness connector.

    Is the resistance below 1.0 ohm?

    Yes

    1. Go to  2).

    No

    1. Repair the S-CAN (+) circuit for an open.
    2. Perform ABS VERIFICATION TEST .
  2. 2) MEASURE THE RESISTANCE OF THE S-CAN (-) CIRCUIT

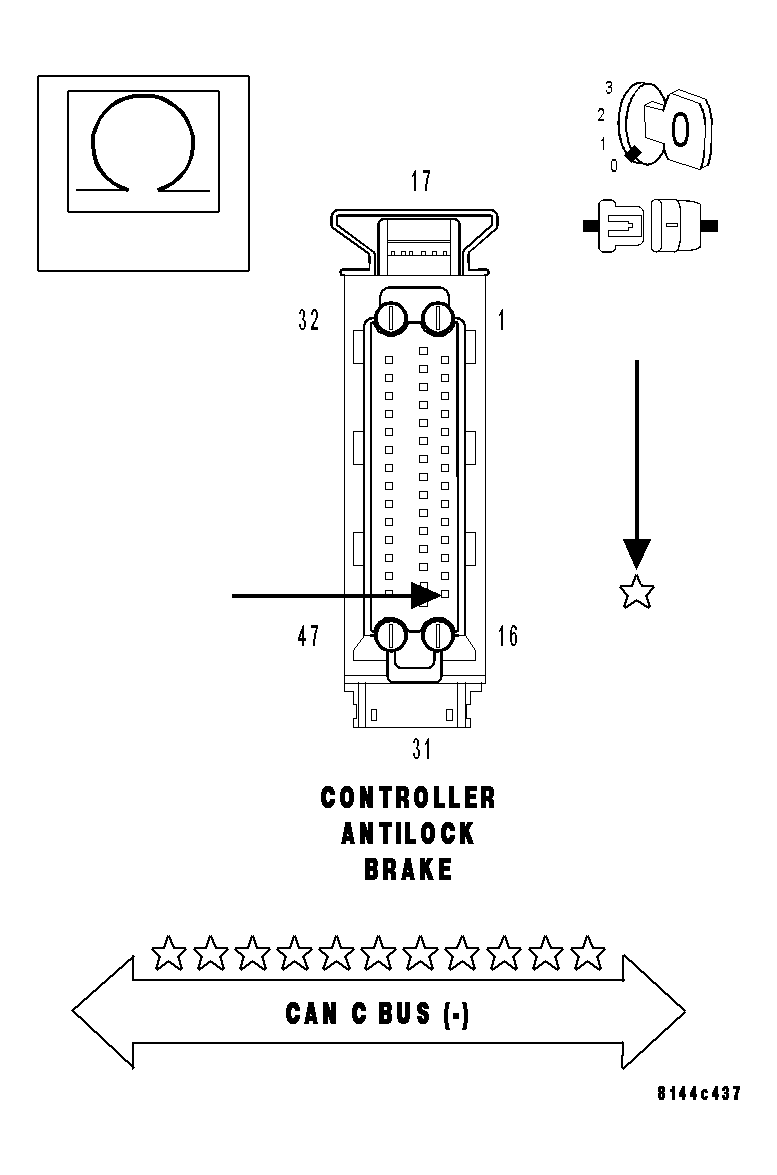

    Fig 2: Checking CAN C BUS (-) Circuit Resistance
    GC0033808Courtesy of CHRYSLER LLC

    With the ignition off.

    Measure the resistance of the S-CAN (-) circuit from the CAB harness connector to the Yaw Rate/Acceleration sensor harness connector.

    Is the resistance below 1.0 ohm?

    Yes

    1. Replace the Controller Antilock Brake (CAB) Module. Refer to REMOVAL .
    2. Perform ABS VERIFICATION TEST .

    No

    1. Repair the S-CAN (-) circuit for an open.
    2. Perform ABS VERIFICATION TEST .
